Front Power Window Motor

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

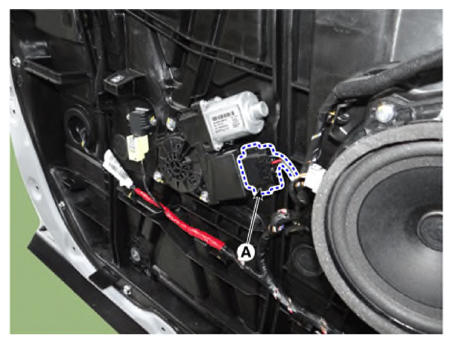

  3. Disconnect the connector (A) from the front power window motor.
    G13312393Courtesy of KIA MOTORS AMERICA, INC.

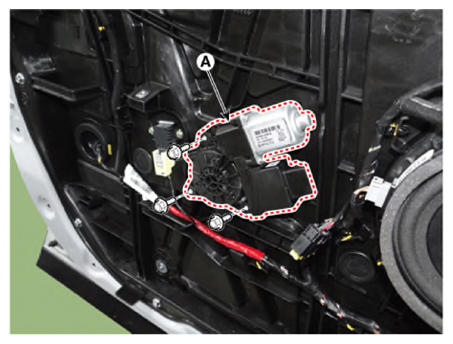

  4. Remove the front power window motor (A) after loosening the mounting bolts.
G13312394Courtesy of KIA MOTORS AMERICA, INC.
