Rear Power Window Motor

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

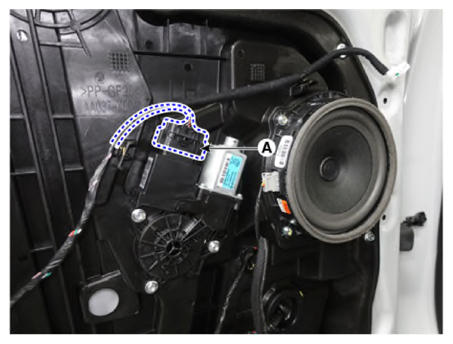

  3. Disconnect the connector (A) from the rear power window motor.
    G13312395Courtesy of KIA MOTORS AMERICA, INC.

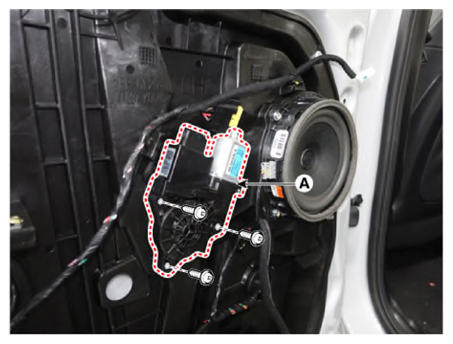

  4. Remove the rear power window motor (A) after loosening the mounting bolts.
G13312396Courtesy of KIA MOTORS AMERICA, INC.
