Repair Procedures: Removal

Turn the ignition switch OFF.

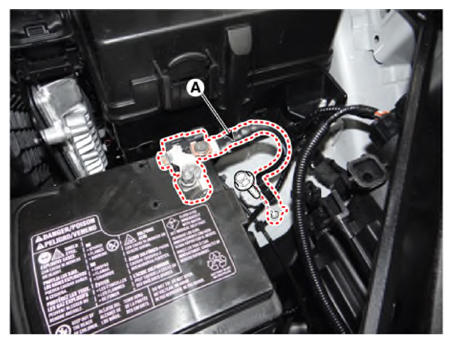

Disconnect the battery negative (-) terminal (A).
Tightening torque

8.0 - 10.0 N.m (0.8 - 1.0 kgf.m, 5.9 - 7.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

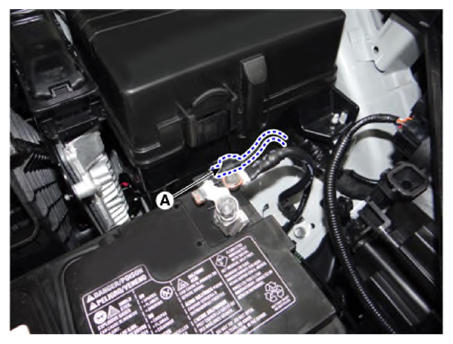

Disconnect the battery sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

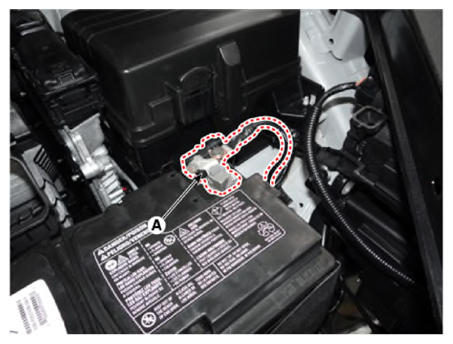

Remove the battery sensor (A) by loosening the mounting bolt and nut.
Tightening torque

Bolt: 27.0 - 33.0 N.m (2.8 - 3.4 kgf.m, 19.9 - 24.3 lb.ft)

Nut: 8.0 - 10.0 N.m (0.8 - 1.0 kgf.m, 5.9 - 7.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
