Battery Tray

  1. Remove the battery.

    (Refer to Battery System - "BATTERY ")

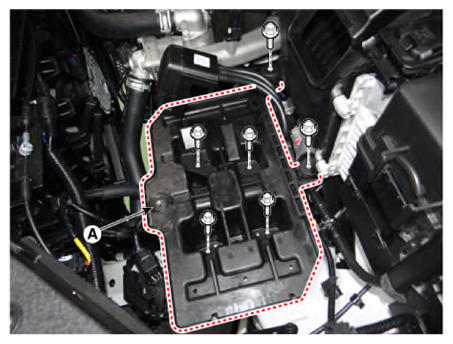

  2. Remove the battery tray (A) after loosening the mounting bolts.

    Tightening torque:

    9.0 - 14.0 N.m (0.9 - 1.4 kgf.m, 6.6 - 10.3 lb.ft)

G13311996Courtesy of KIA MOTORS AMERICA, INC.
