Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Lift the vehicle.

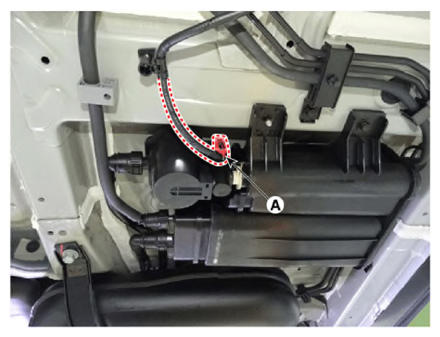

  3. Disconnect the canister close valve connector (A).
    G13310100Courtesy of KIA MOTORS AMERICA, INC.

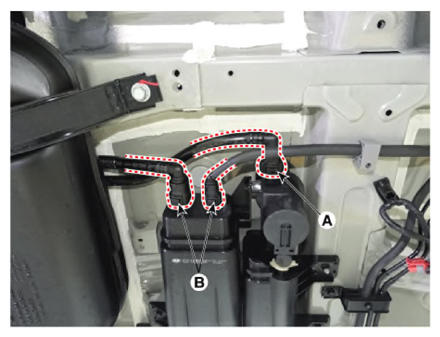

  4. Disconnect the ventilation tube quick-connector (A).
  5. Disconnect the vapor tube quick-connector (B).
    G13310101Courtesy of KIA MOTORS AMERICA, INC.

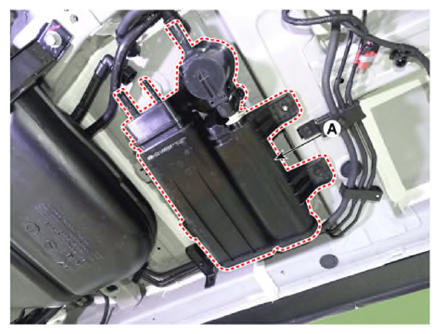

  6. Remove installation bolts & nut and then remove the canister assembly (A).
    G13310102Courtesy of KIA MOTORS AMERICA, INC.

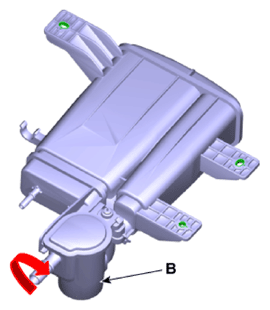

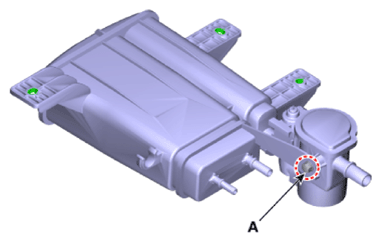

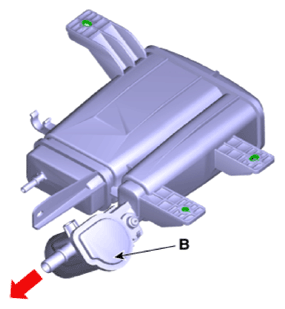

  7. Remove the mounting bolt (A) and then separate the fuel tank air filter & canister close valve (B) from the canister after rotating it in the direction of the arrow in the figure.
    G13310103Courtesy of KIA MOTORS AMERICA, INC.
    G13310104Courtesy of KIA MOTORS AMERICA, INC.
    G13310105Courtesy of KIA MOTORS AMERICA, INC.

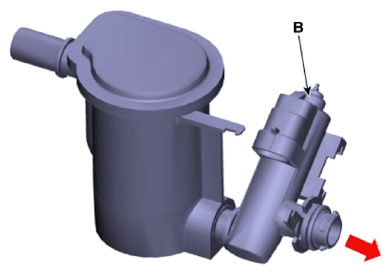

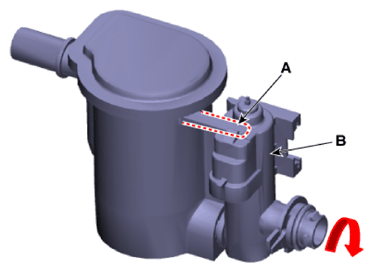

  8. Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter after rotating it in the direction of the arrow in the figure.
    G13310106Courtesy of KIA MOTORS AMERICA, INC.
    G13310107Courtesy of KIA MOTORS AMERICA, INC.
