Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

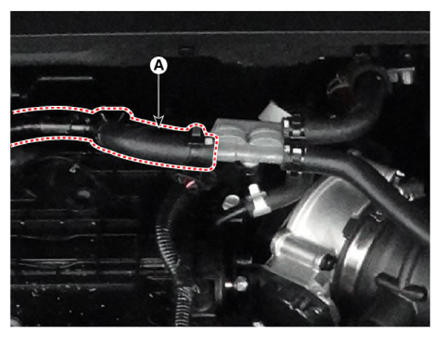

  2. Disconnect the vacuum hose (A).
    G13310002Courtesy of KIA MOTORS AMERICA, INC.

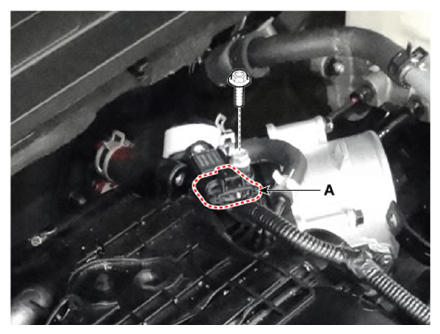

  3. Disconnect the intake temperature sensor connector (A).
  4. Remove the sensor after loosening the mounting bolt.

    Intake Air Temperature Sensor (IATS) mounting bolt:

    8.8 - 10.7 N.m (0.9 - 1.1 kgf.m, 6.5 - 7.9 lb.ft)

    G13310003Courtesy of KIA MOTORS AMERICA, INC.
