Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

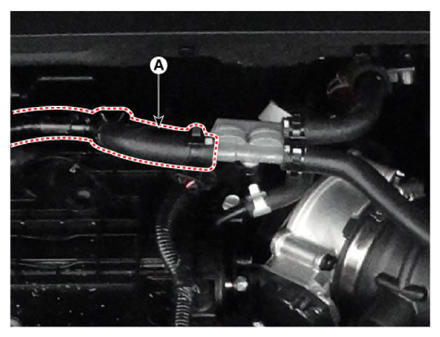

  2. Disconnect the vacuum hose (A).
    G13310007Courtesy of KIA MOTORS AMERICA, INC.

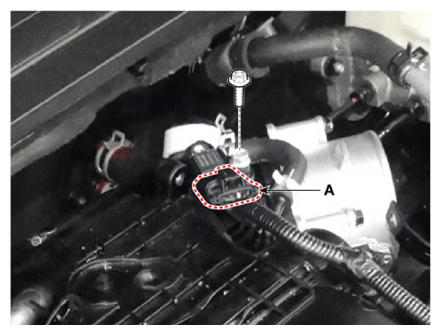

  3. Disconnect the manifold absolute pressure sensor connector (A).
  4. Remove the sensor after loosening the mounting bolt.

    Manifold Absolute Pressure Sensor (MAPS) mounting bolt:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13310008Courtesy of KIA MOTORS AMERICA, INC.
