Repair Procedures: Removal

  1. Remove the fuel filler cap after opening the fuel filler door.
  2. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
  3. Lift the vehicle.
  4. Remove the rear-LH wheel, tire, and the inner wheel house.

    (Refer to Body - "REAR WHEEL GUARD ")

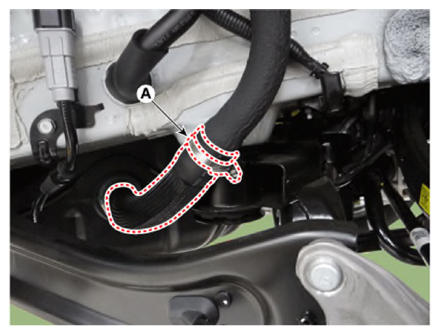

  5. Disconnect the fuel filler hose (A).
    G13310205Courtesy of KIA MOTORS AMERICA, INC.

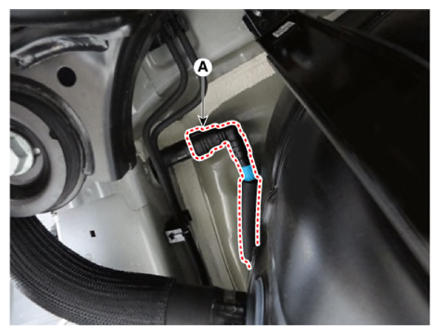

  6. Disconnect the ventilation hose (A).
    G13310206Courtesy of KIA MOTORS AMERICA, INC.

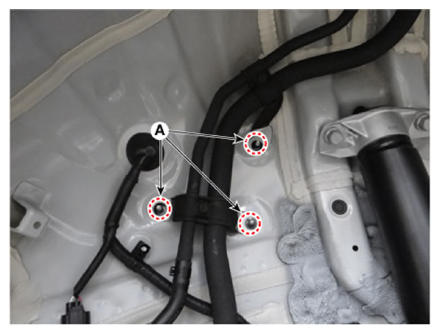

  7. Remove the filler-neck assembly after loosening the mounting nuts (A).
    G13310207Courtesy of KIA MOTORS AMERICA, INC.
