Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

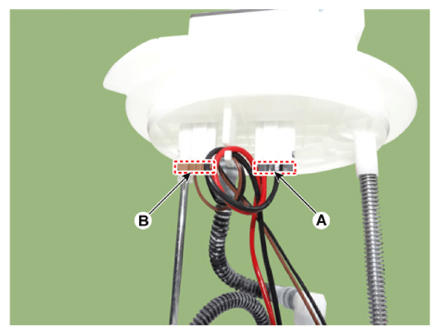

  2. Remove the fuel pump motor connector (A) and fuel sender connector (B).
    G13310154Courtesy of KIA MOTORS AMERICA, INC.

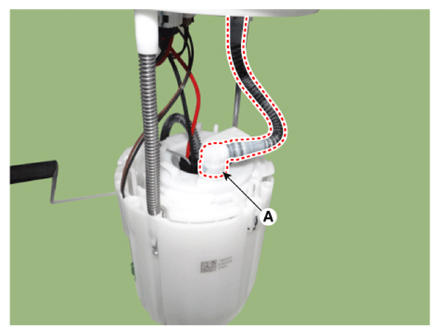

  3. Remove the fixing clip, and then disconnect the feed tube (A).
    G13310155Courtesy of KIA MOTORS AMERICA, INC.

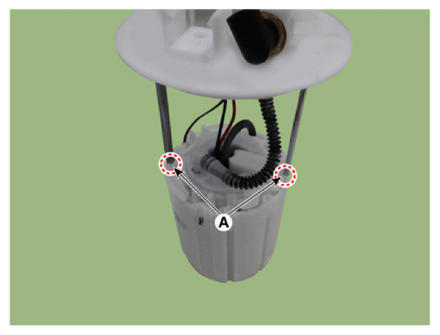

  4. Remove the head assembly after releasing the cushion hook (A).
    G13310156Courtesy of KIA MOTORS AMERICA, INC.

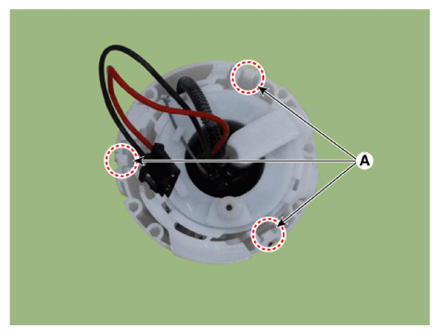

  5. Remove the reservoir-cup after releasing the fixing hook (A).
    G13310157Courtesy of KIA MOTORS AMERICA, INC.

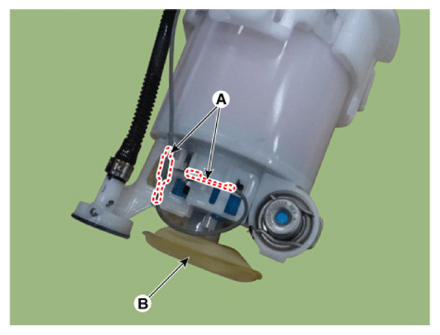

  6. Disconnect the ground terminal (A).
  7. Remove the pre-filter (B).
    G13310158Courtesy of KIA MOTORS AMERICA, INC.

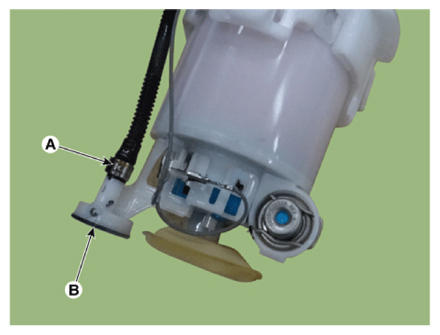

  8. Remove the fixing clip (A) and the assist pump assembly (B).
    G13310159Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

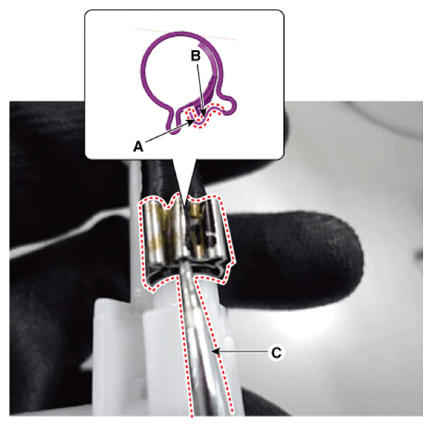

    1. Unhook the clip (A, B) by using an awl (C).
      G13310160Courtesy of KIA MOTORS AMERICA, INC.

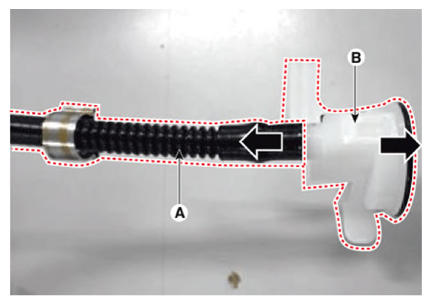

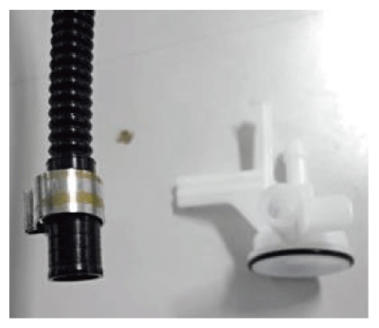

    2. Separate the tube (A) with the assist pump (B) by pulling it
      G13310161Courtesy of KIA MOTORS AMERICA, INC.
      G13310162Courtesy of KIA MOTORS AMERICA, INC.
  9. Remove the fuel pump motor (A) from the fuel filter (B).
    G13310163Courtesy of KIA MOTORS AMERICA, INC.
