Repair Procedures: Installation
- Check that the gear is shifted to "N".

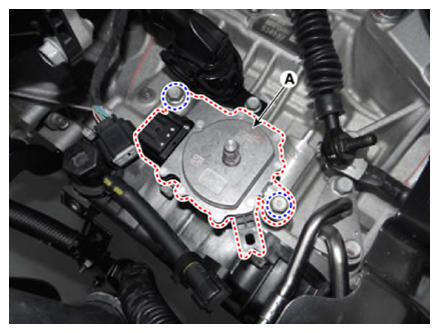

- Install the position switch (A).NOTE: Lightly tighten the inhibitor switch mounting bolts so that necessary adjustments can be made.

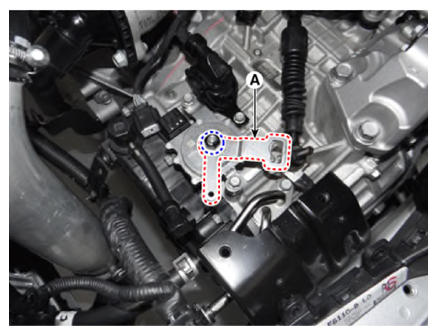

- Install the manual control lever (A) and washer.NOTE: Lightly tighten the manual control lever nut so that necessary adjustments can be made.

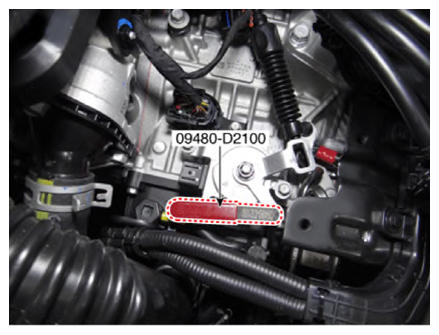

- Align the hole in the manual control lever with the "N" position hole of the position switch and then insert the SST inhibitor switch guide pin (09480-D2100).

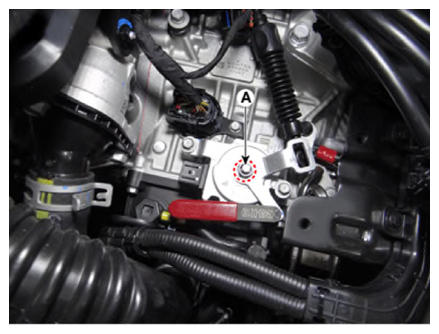

- Tighten the manual control lever mounting nut (A).
Tightening torque:
17.7 - 24.5 N.m (1.8 - 2.5 kgf.m, 13.0 - 18.1 lb.ft)

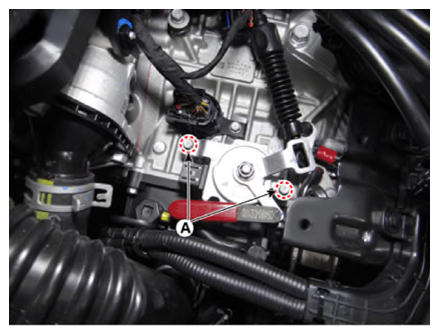

- Tighten the position switch mounting bolts (A).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

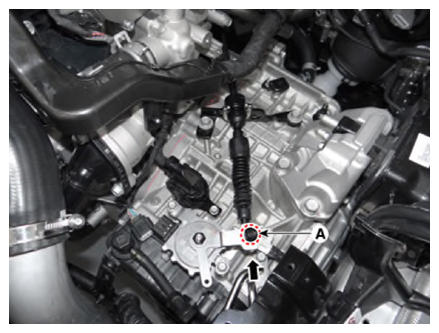

- Tighten the nut (A) to the specified torque after removing free play by pushing the shift cable in the direction of the arrow.
Tightening torque:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)
- Remove the SST (09480-D2100) from the hole.

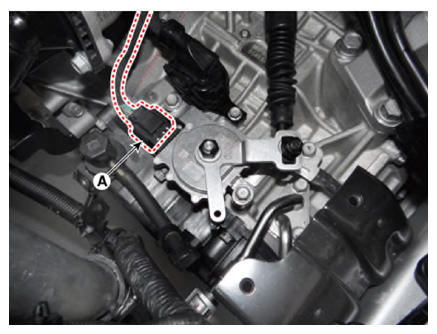

- Connect the position switch connector (A).
- Install the battery tray.
(Refer to Body Electrical System - "BATTERY ")
- Install the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Install the battery.
(Refer to Body Electrical System - "BATTERY ")
