Repair Procedures: Removal

  1. Shift the gear to "N".
  2. Remove the battery.

    (Refer to Body Electrical System - "BATTERY ")

  3. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  4. Remove the battery tray.

    (Refer to Body Electrical System - "BATTERY ")

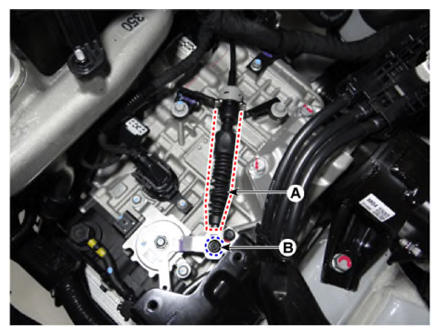

  5. Remove the shift cable (A) from the bracket after loosening a nut (B).
    G13310295Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

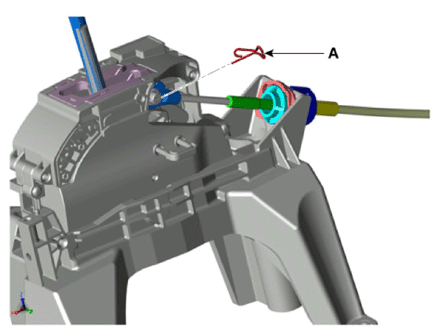

  7. Remove the shift cable from the shift lever pin after removing the snap pin (A).
    G13310296Courtesy of KIA MOTORS AMERICA, INC.

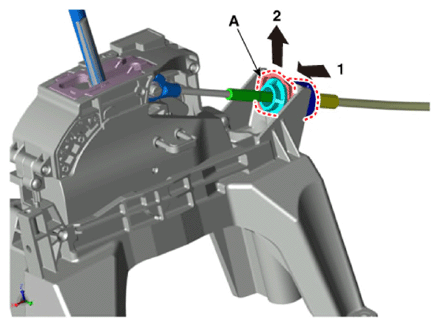

  8. Remove the cable socket (A) from the shift lever.
    G13310297Courtesy of KIA MOTORS AMERICA, INC.

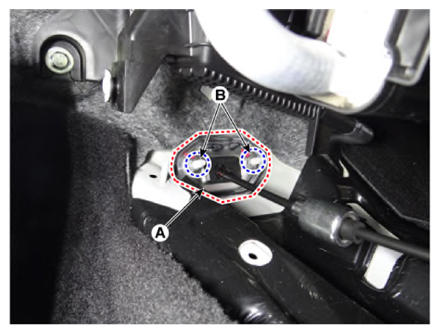

  9. Remove the shift cable retainer (A) after loosening the nuts (B).

    Then, remove the shift cable by pulling it toward the vehicle interior.

    G13310298Courtesy of KIA MOTORS AMERICA, INC.
