Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

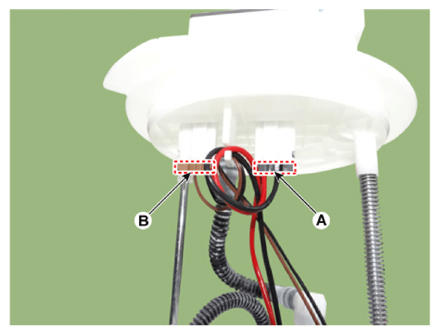

  2. Remove the fuel pump motor connector (A) and fuel sender connector (B).
    G13310167Courtesy of KIA MOTORS AMERICA, INC.

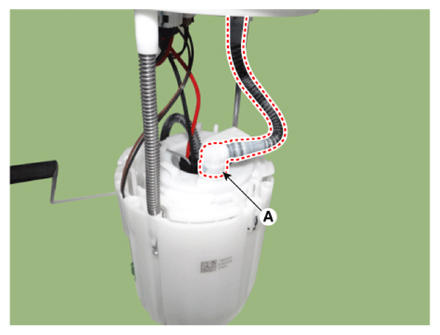

  3. Remove the fixing clip, and then disconnect the feed tube (A).
    G13310168Courtesy of KIA MOTORS AMERICA, INC.

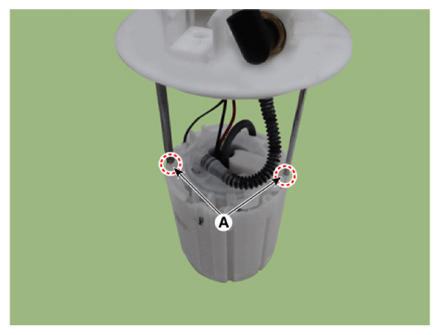

  4. Remove the head assembly after releasing the cushion hook (A).
    G13310169Courtesy of KIA MOTORS AMERICA, INC.

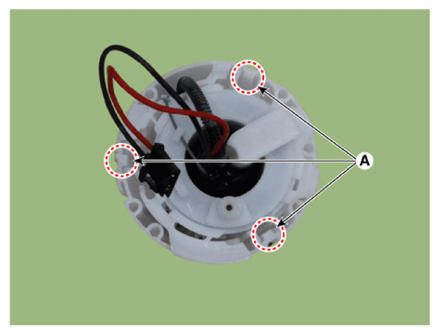

  5. Remove the reservoir-cup after releasing the fixing hook (A).
    G13310170Courtesy of KIA MOTORS AMERICA, INC.

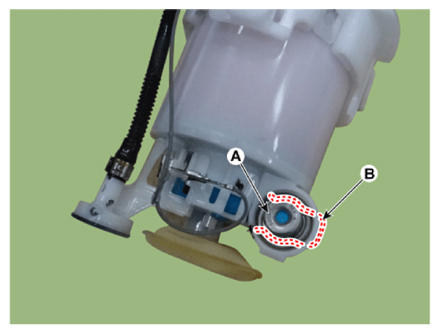

  6. Remove the fuel pressure regulator (A) after releasing the fixing pin (B).
    G13310171Courtesy of KIA MOTORS AMERICA, INC.

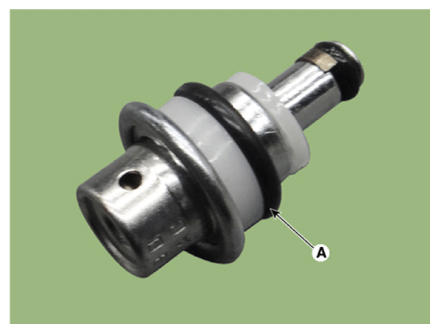

    G13310172Courtesy of KIA MOTORS AMERICA, INC.
