Removal & Installation: Installation

NOTE:
  • Install the AFS with the specified torque.
  • If AFS is dropped, it may cause internal damage. Do not use it.
  1. Install in the reverse order of removal.

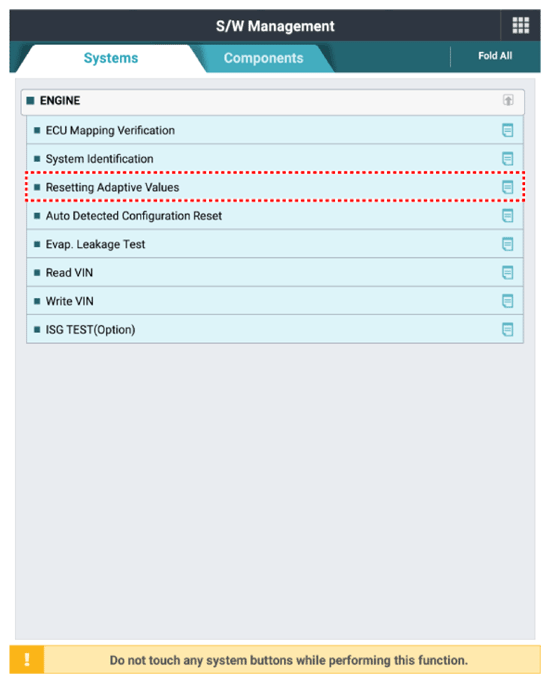

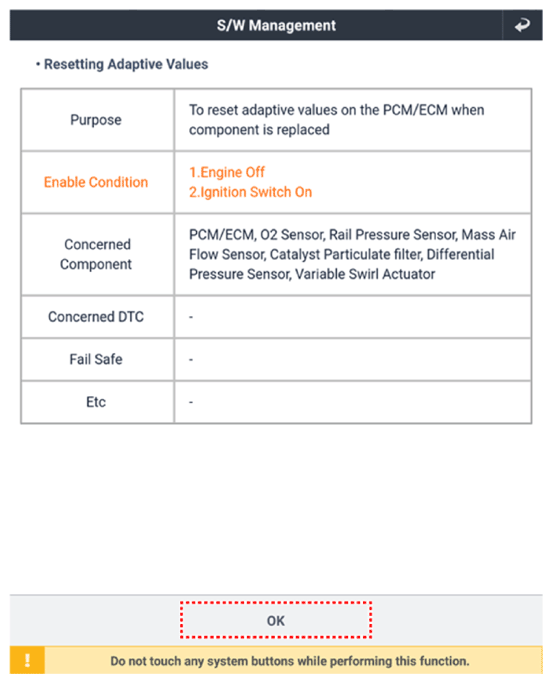

  2. Reset the Engine Control Module (ECM) adaptive value after replacing the AFS with a new one.
G14797171Courtesy of KIA MOTORS AMERICA, INC.
G14797172Courtesy of KIA MOTORS AMERICA, INC.
