Check Short Circuit

1. Test Method for Short to Ground Circuit
   • Continuity Check with Chassis Ground

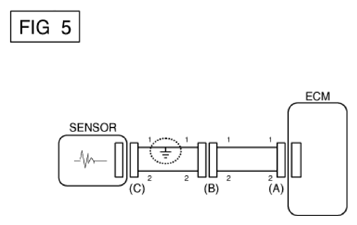

   If short to ground circuit occurs as shown in [Figure below], the broken point can be found by performing Step 2 (Continuity Check Method with Chassis Ground) as shown below.

   Courtesy of KIA MOTORS AMERICA, INC.

2. Continuity Check Method (with Chassis Ground)

Specification (Resistance)

1Ω or less → Short to Ground Circuit

1MΩ or Higher → Normal Circuit

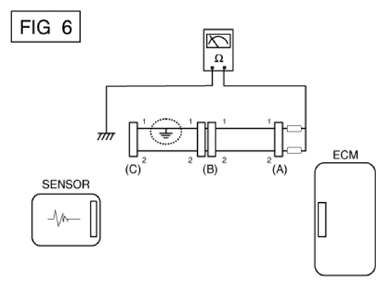

1. Disconnect connectors (A) and (C) and measure the resistance between connector (A) and Chassis Ground as shown in [Figure below].

   The measured resistance is below 1 Ω for line 1 and higher than 1 MΩ for line 2. Specifically, the short to ground circuit is in line 1. (Line 2 is normal.) To find exact broken point, check the sub line of line 1 as described in the following step.

   Courtesy of KIA MOTORS AMERICA, INC.

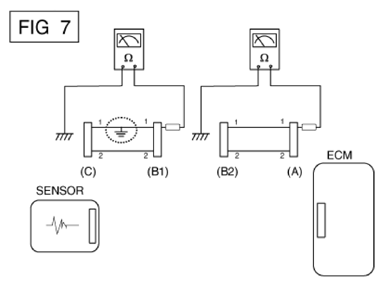

2. Disconnect connector (B), and measure the resistance between connector (A) and chassis ground, and between (B1) and chassis ground as shown in [Figure below].

The measured resistance between connector (B1) and chassis ground is 1Ω or less. The short to ground circuit is between terminal 1 of connector (C) and terminal 1 of connector (B1).

Courtesy of KIA MOTORS AMERICA, INC.
