Position Sensor: Removal
- Shift the gear to "N" range and turn ignition OFF.
- Remove the electronic shift actuator.
(Refer to Automatic Transaxle Control System - "ELECTRONIC SHIFT ACTUATOR ")

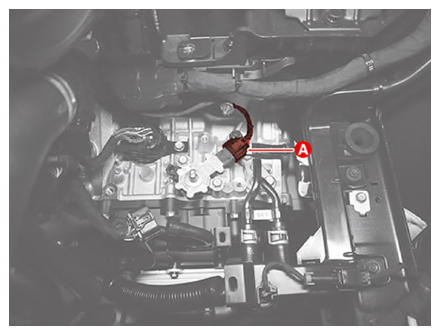

- Disconnect the position sensor connector (A).

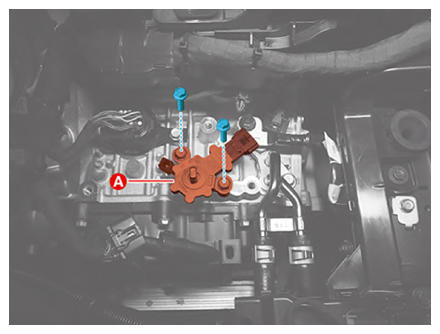

- Remove the position sensor (A) after removing the bolts.
