Shift Cable: Installation

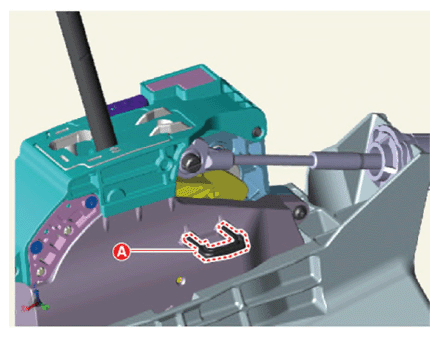

Insert "N" range fixing pin (A) of shift lever after checking shift lever and the manual control lever are in the "N" range before installation.

Courtesy of KIA MOTORS AMERICA, INC.

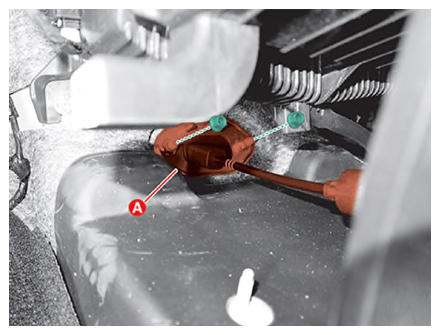

Install the shift cable retainer (A).
Tightening torque:

9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

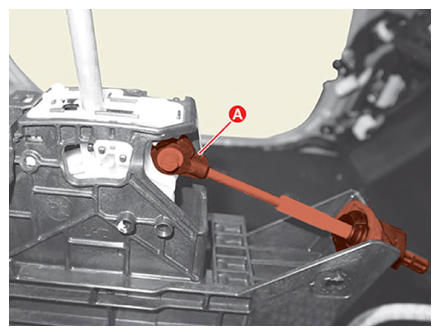

Install the shift cable (A) at shift lever.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Install the shift cable after checking the direction of projection to prevent incorrect assembly.
Courtesy of KIA MOTORS AMERICA, INC.

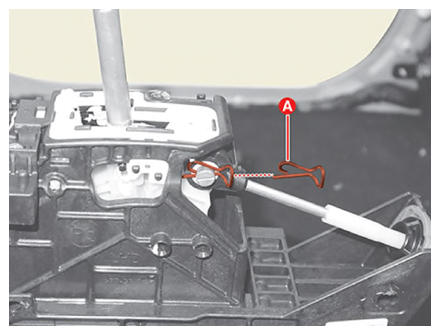

Insert the snap pin (A).

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:

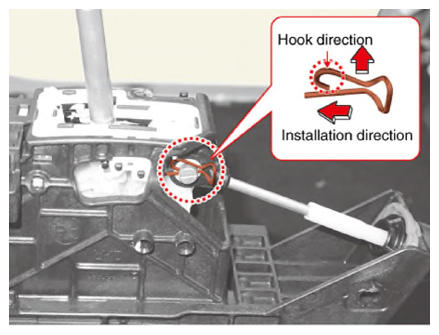

- Mind the installation direction of snap pin and install the snap pin with the hook facing upward.
Courtesy of KIA MOTORS AMERICA, INC.
Check that the shift lever and manual control lever are placed in the "N" position.

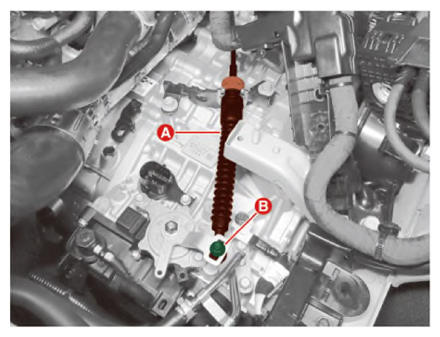

Install the shift cable (A) to bracket and then lightly tighten the nut (B).

Courtesy of KIA MOTORS AMERICA, INC.

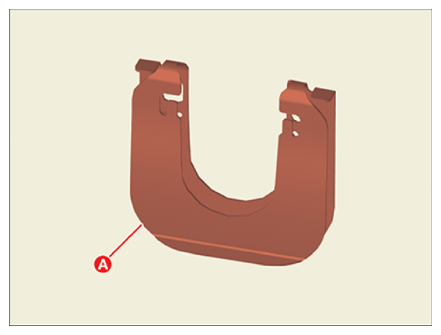

NOTE: The existing shift cable clip (A) must be replaced with new one (do not reuse).

Courtesy of KIA MOTORS AMERICA, INC.

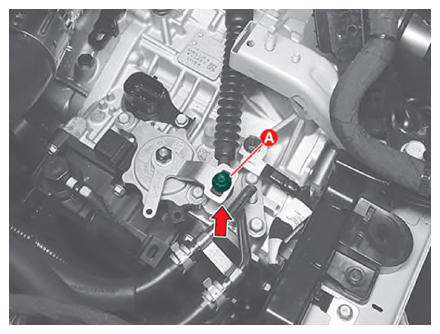

Tighten the nut (A) to the specified torque after removing free play by pushing the shift cable in the direction of the arrow.
Tightening torque:

9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

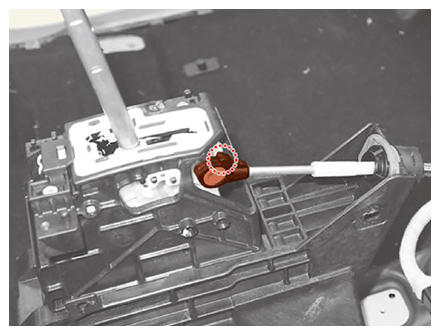

Remove the "N" range fixing pin (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")
Install the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
Install the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Operate the shift lever to check whether each position (P, R, N, D) works.
