Transaxle Control Module (TCM): Installation

Install in the reverse order of removal.

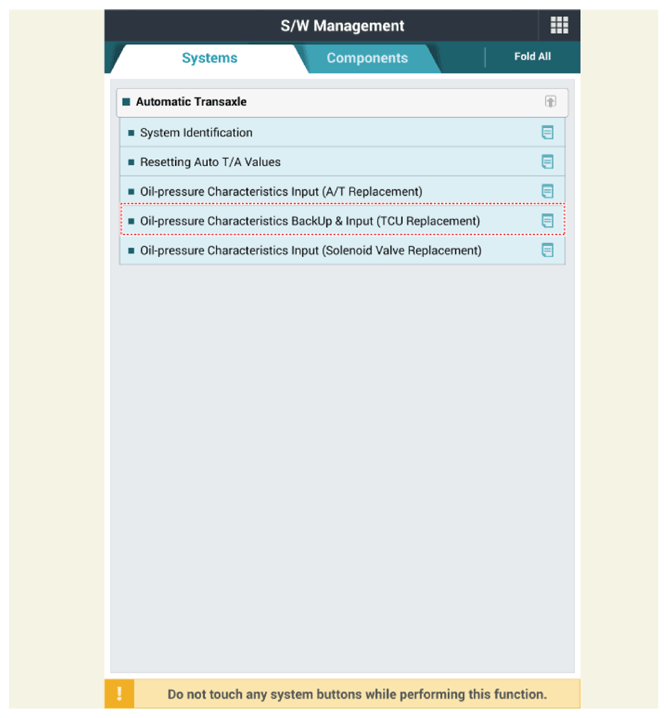

Perform the oil pressure characteristics input procedure using the KDS when replacing with a new TCM.

Courtesy of KIA MOTORS AMERICA, INC.
Perform the TCM adaptive values learning procedure.
(Refer to Automatic Transaxle Control System - "REPAIR PROCEDURES ")
