Removal & Installation: Installation

  1. Install in the reverse order of removal.
NOTE:
  • Insert "N" range fixing pin (A) of shift lever after checking shift lever and the manual control lever are in the "N" range before installation.
    G14797590Courtesy of KIA MOTORS AMERICA, INC.

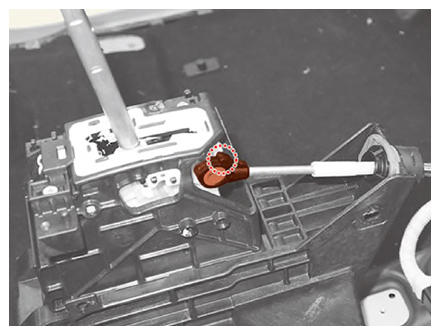

  • Install the shift cable after checking the direction of projection to prevent incorrect assembly.
    G14797591Courtesy of KIA MOTORS AMERICA, INC.

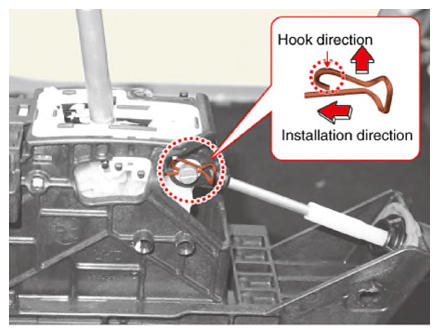

  • Mind the installation direction of snap pin and install the snap pin with the hook facing upward.
    G14797592Courtesy of KIA MOTORS AMERICA, INC.

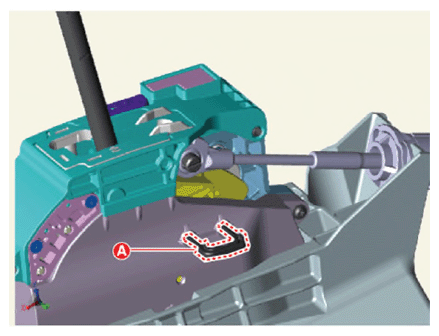

  • Make sure to get rid of "N" range fixing pin (A) after installing the shift lever assembly.
G14797593Courtesy of KIA MOTORS AMERICA, INC.
