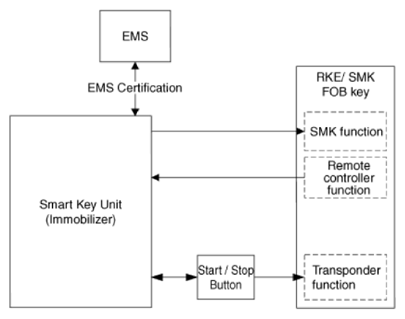

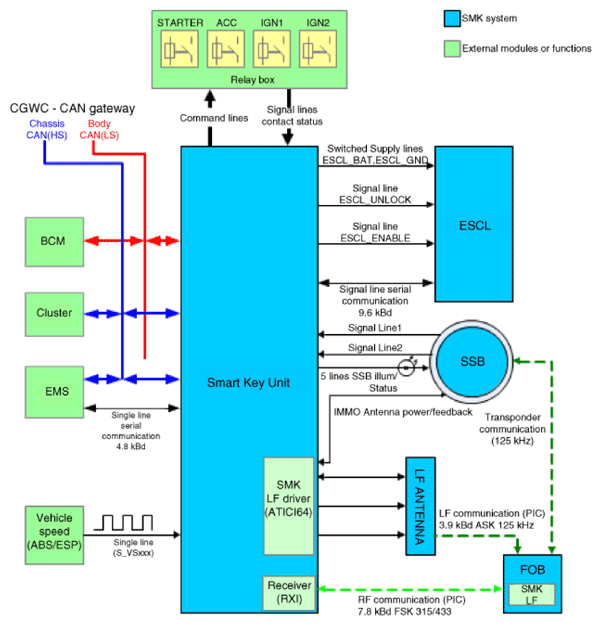

System Block Diagram
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
Refer to the "
SMART KEY SYSTEM
" for the block diagram and circuit diagram of the smart key unit.
Courtesy of KIA MOTORS AMERICA, INC.
