Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")
- Remove the steering column upper and lower shrouds.
(Refer to Body - "STEERING COLUMN SHROUD PANEL ")

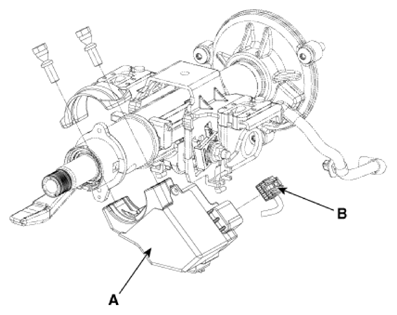

- Remove the electronic steering column lock (A) by loosening the mounting bolts after disconnecting the connector (B).
Tightening torque:
6.9 - 12.8 N.m (0.7 - 1.3 kgf.m, 5.0 - 9.4 lb.ft)
