Front Power Window Motor

  1. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

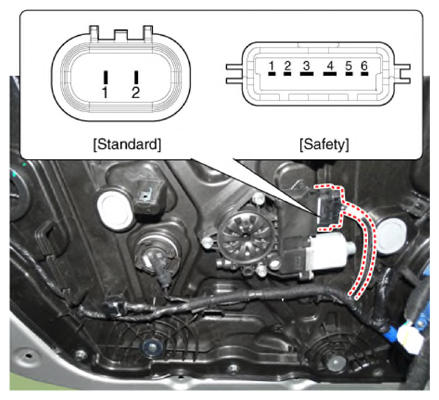

  2. Disconnect the connector from the motor.
    G14564083Courtesy of KIA MOTORS AMERICA, INC.
  3. Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.

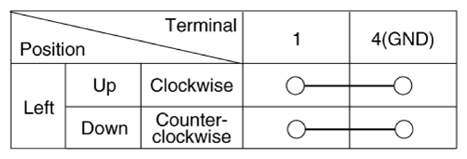

    [Safety window motor]

    G14564084Courtesy of KIA MOTORS AMERICA, INC.

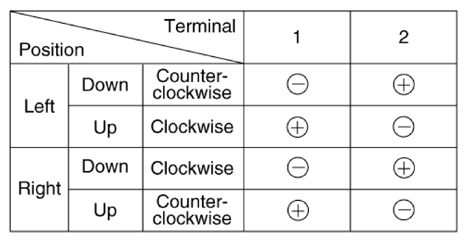

    [Standard window motor]

    G14564085Courtesy of KIA MOTORS AMERICA, INC.
