Repair Procedures: Removal

  1. Disconnect the battery negative terminal.
  2. Remove the engine cover.

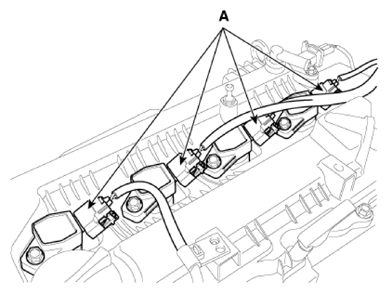

  3. Disconnect the ignition coil connectors (A).
    G14564157Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

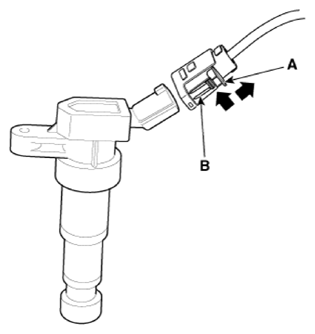

    • When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
    G14564158Courtesy of KIA MOTORS AMERICA, INC.

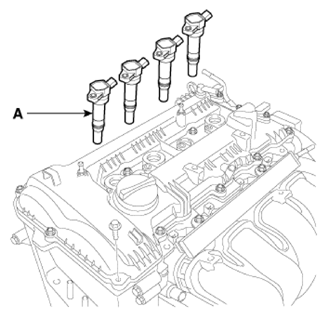

  4. Remove the ignition coil (A).
    G14564159Courtesy of KIA MOTORS AMERICA, INC.
