Components Location

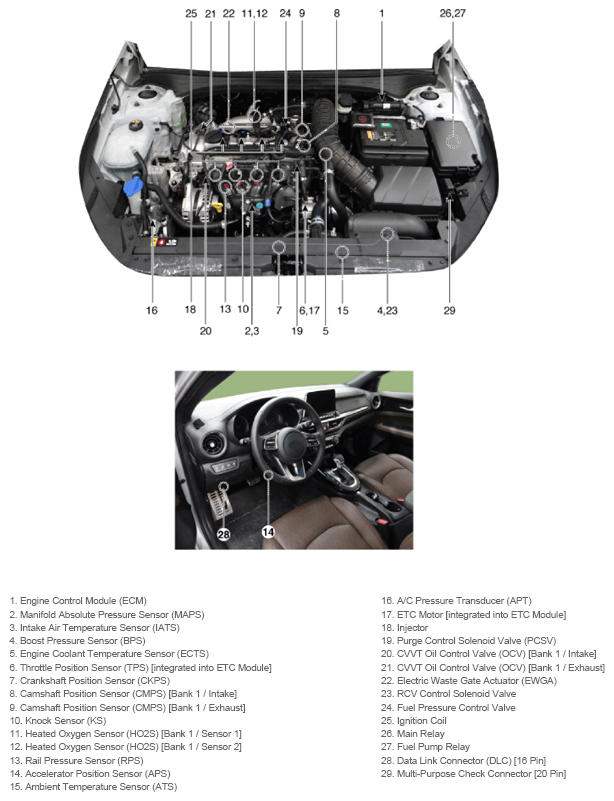

G14560798Courtesy of KIA MOTORS AMERICA, INC.

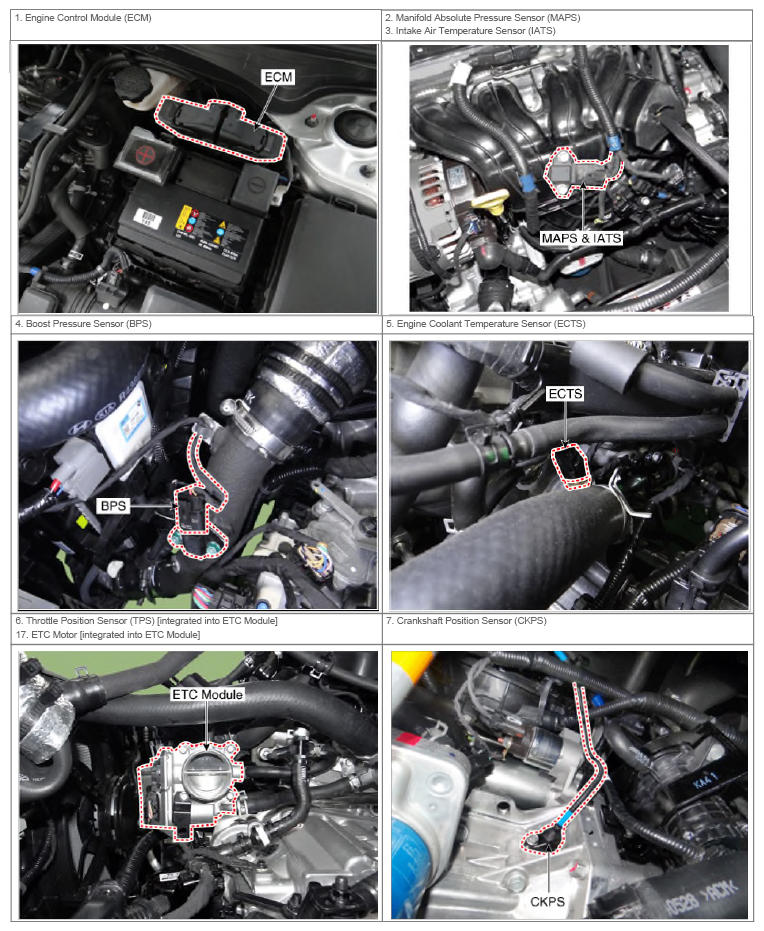

G14560799Courtesy of KIA MOTORS AMERICA, INC.

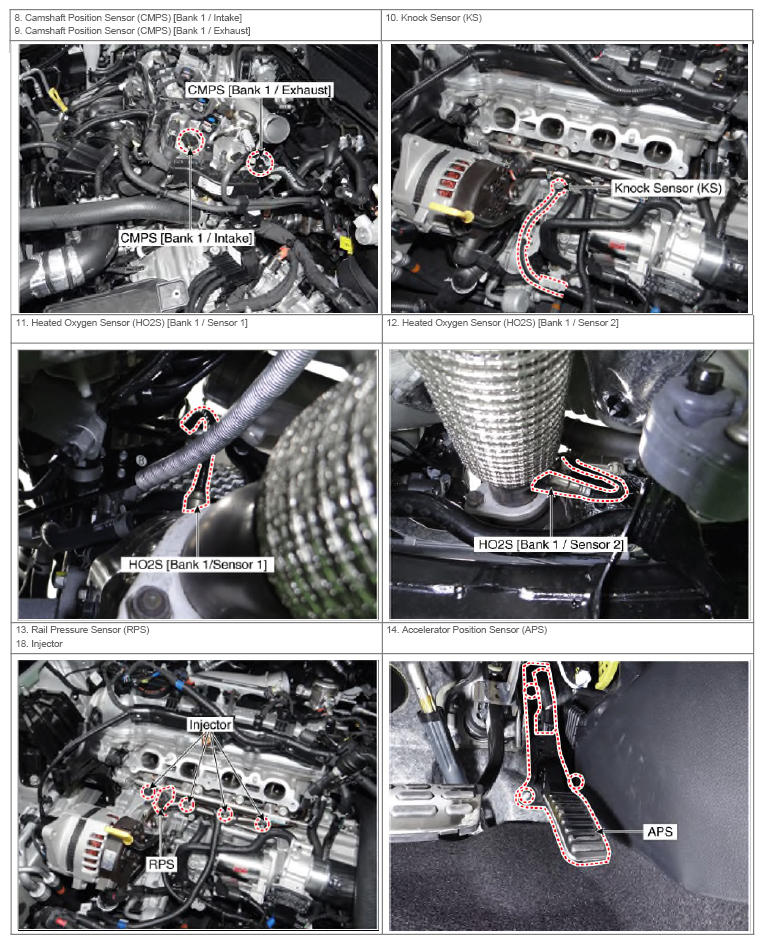

G14560800Courtesy of KIA MOTORS AMERICA, INC.

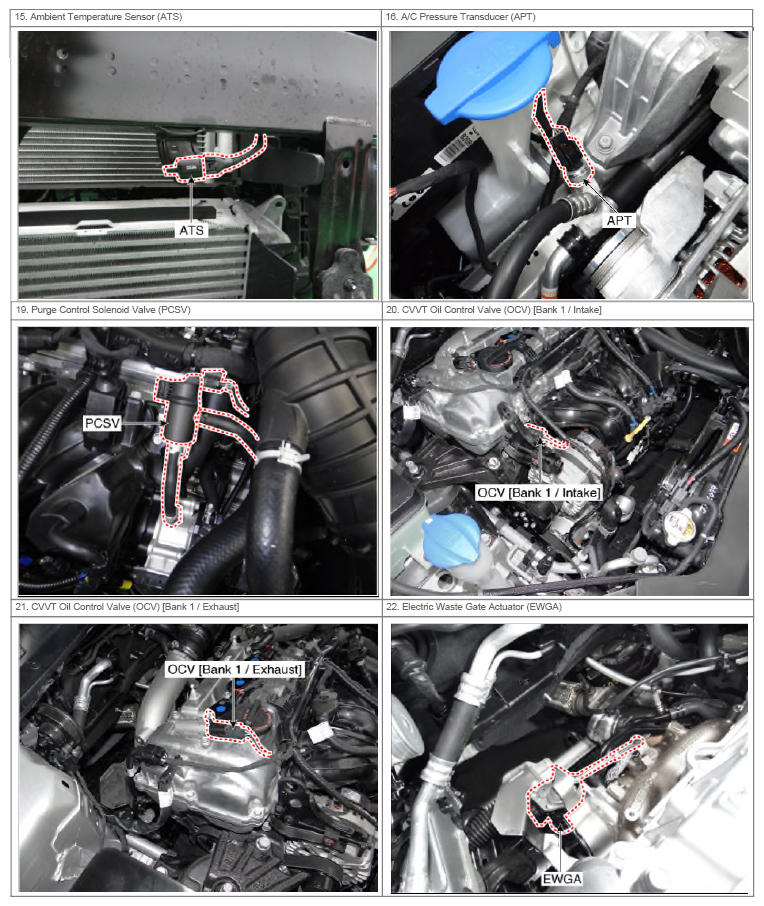

G14560801Courtesy of KIA MOTORS AMERICA, INC.

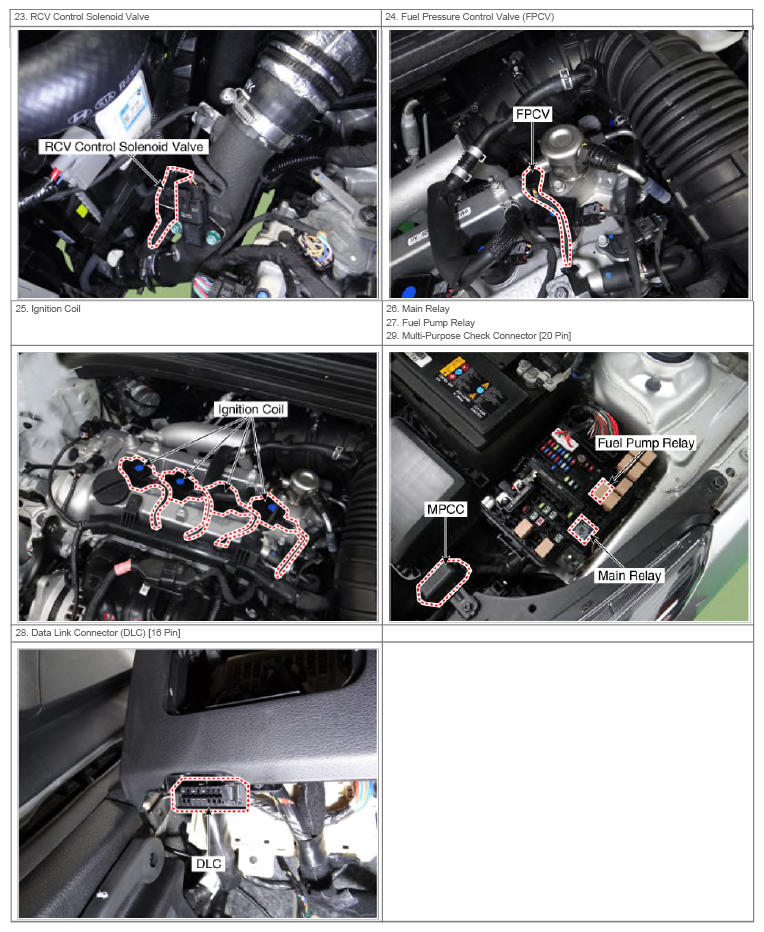

G14560802Courtesy of KIA MOTORS AMERICA, INC.
