Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
Disconnect the CVVT oil control valve connector.
Remove the valves (A) by loosening the mounting bolt.
CVVT oil control valve mounting bolt:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

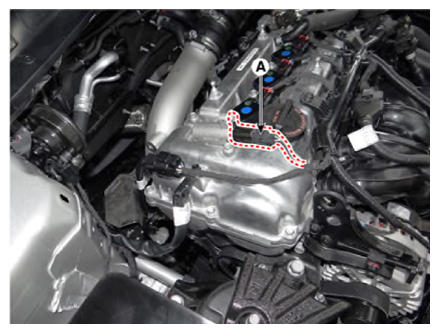

[Bank 1/Intake]

Courtesy of KIA MOTORS AMERICA, INC.

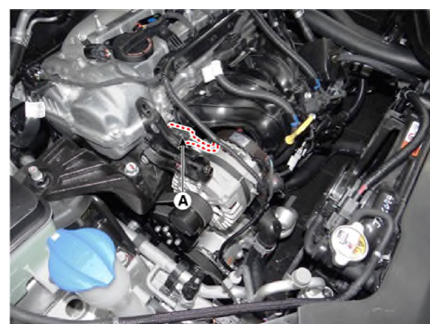

[Bank 1/Exhaust]

Courtesy of KIA MOTORS AMERICA, INC.
