Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

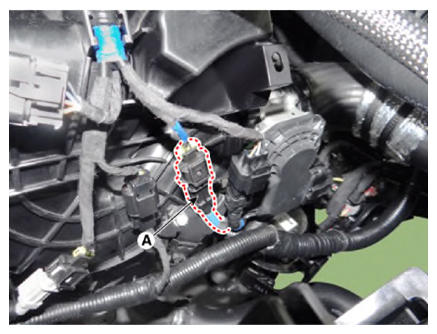

Disconnect the crankshaft position sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

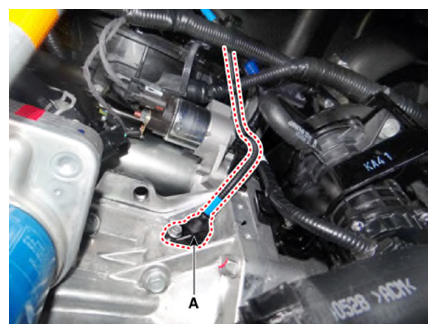

Remove the sensor (A) by loosening the mounting bolt.
Crankshaft position sensor mounting bolt:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
