Diagnosis With KDS

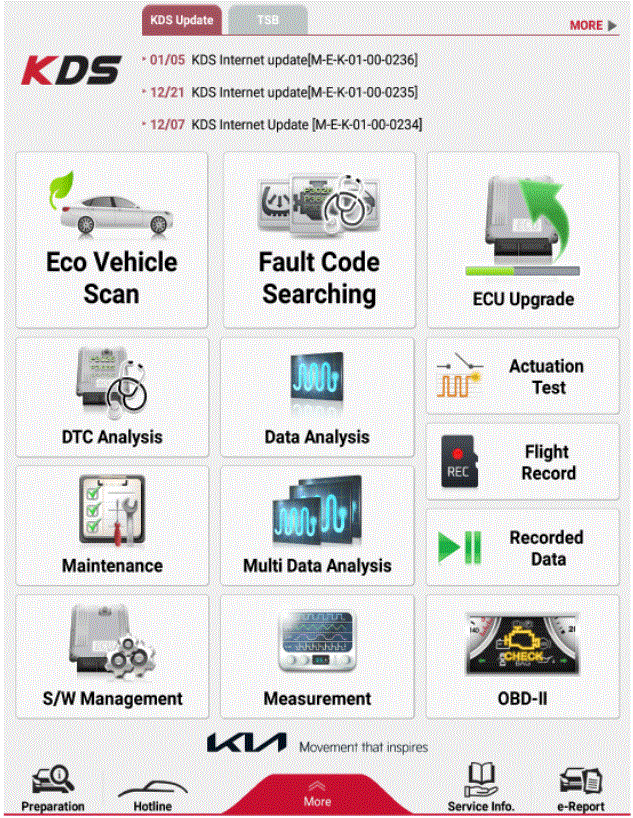

The engine control system can be more quickly diagnosed for problems by using the KDS (Refer to "DTC guide").
Self diagnosis : Checking failure and Diagnosis Trouble Code (DTC)
Data analysis : Checking the system input/output data state
Actuation test : Checking the system operation condition
Software Management : Controlling other features including system option setting and Zero-Adjustment
Courtesy of KIA MOTORS AMERICA, INC.
