Removal & Installation: Removal
- Disconnect the battery negative (-) cable.
- Remove the glove box.
(Refer to Body - "GLOVE BOX ")
- Remove the crash pad under cover.
(Refer to Body - "CRASH PAD UNDER COVER ")

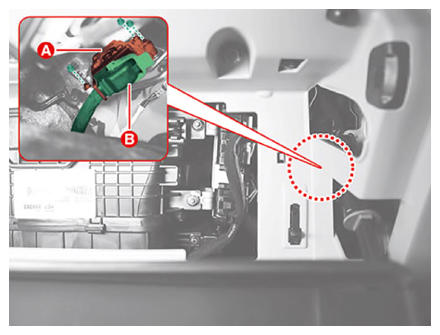

- Remove the SBW Control Unit (SCU) (A) after disconnecting the connector (B) and removing the nuts.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
