Description & Operation: Description

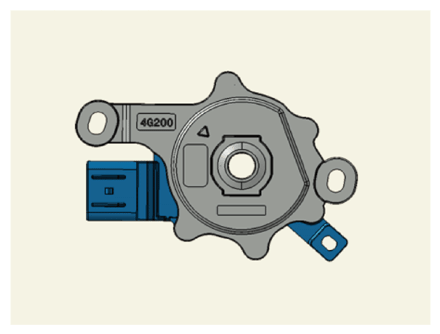

- The position switch signals delivered at the TCM according to control of the shift lever positions (P, R, N, D) and it is used to control of the gear setting.
- When the shift lever is placed in P or N range, it sends the output signal to the start relay.
- When the shift lever is placed in R range, it sends the output signal to the back-up lamps.
