Power Window Rear Switch

  1. Remove the rear door trim.

    (Refer to Body - " REAR DOOR TRIM  ")

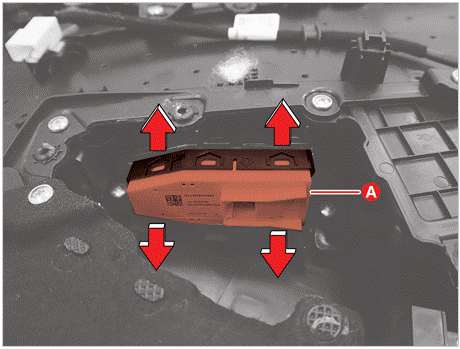

  2. Remove the power window rear switch (A) after pushing the hooks in the direction of arrow.
G15812716Courtesy of KIA MOTORS AMERICA, INC.
G15812717Courtesy of KIA MOTORS AMERICA, INC.
