Components Location

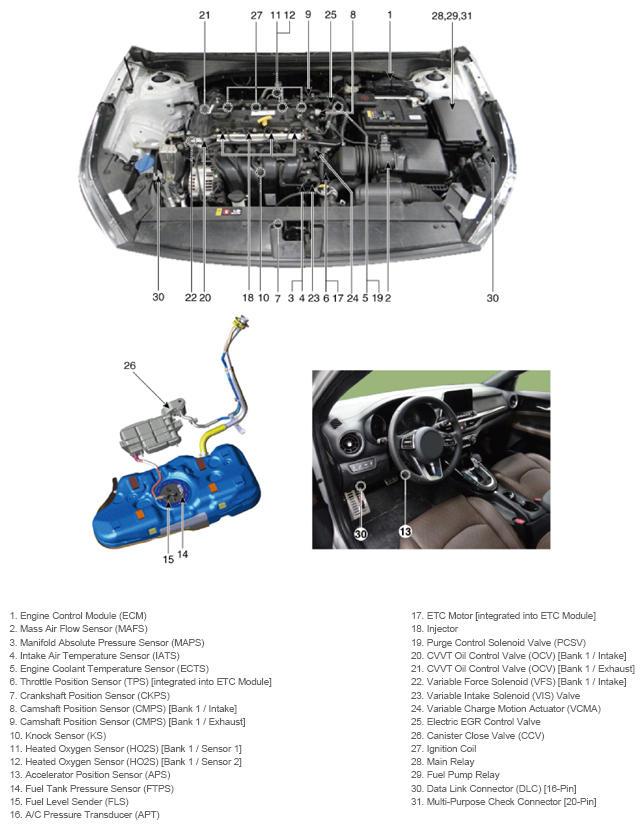

G14564264Courtesy of KIA MOTORS AMERICA, INC.

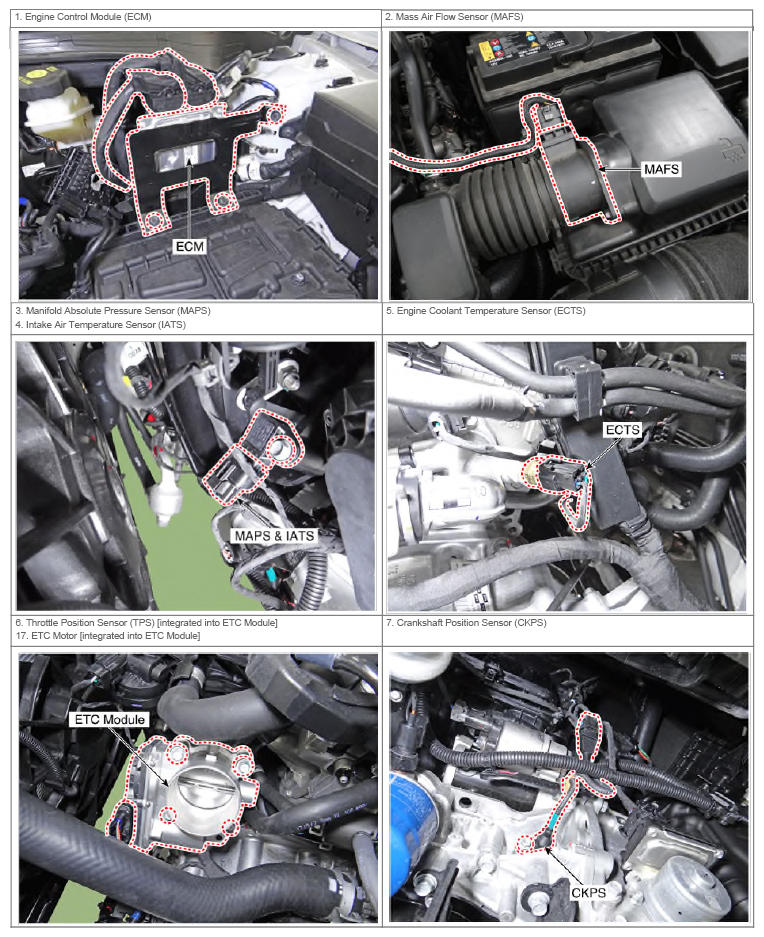

G14564265Courtesy of KIA MOTORS AMERICA, INC.

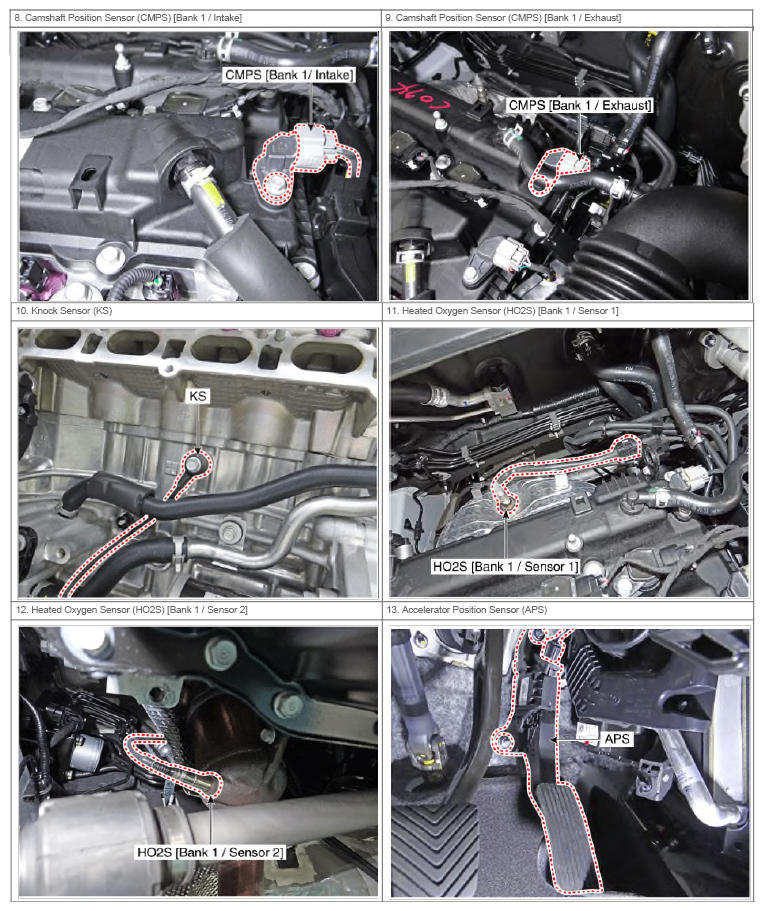

G14564266Courtesy of KIA MOTORS AMERICA, INC.

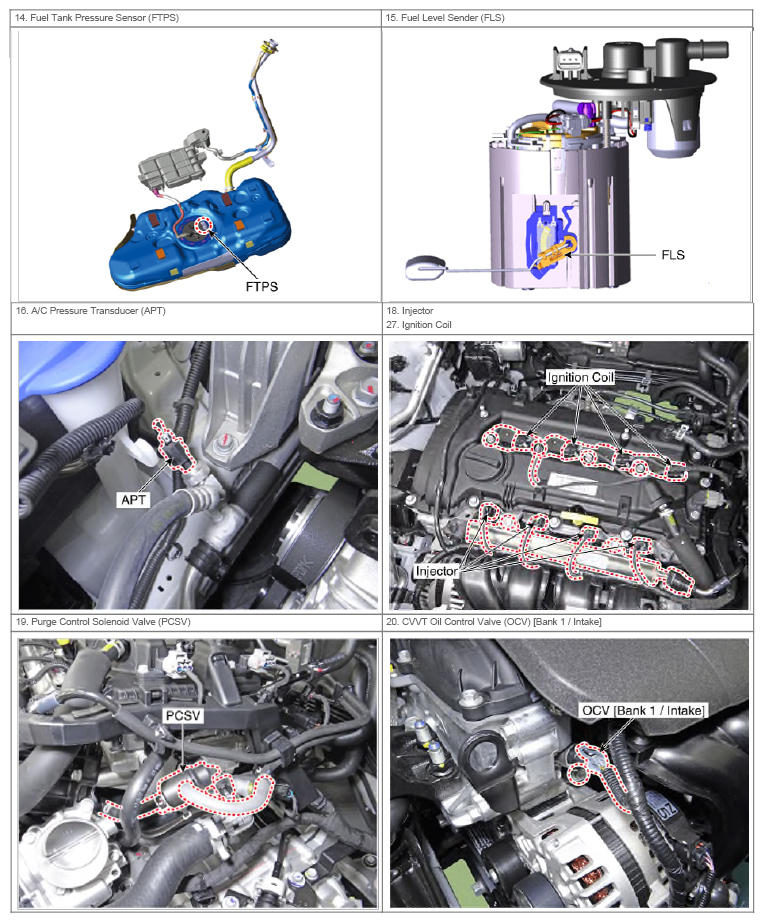

G14564267Courtesy of KIA MOTORS AMERICA, INC.

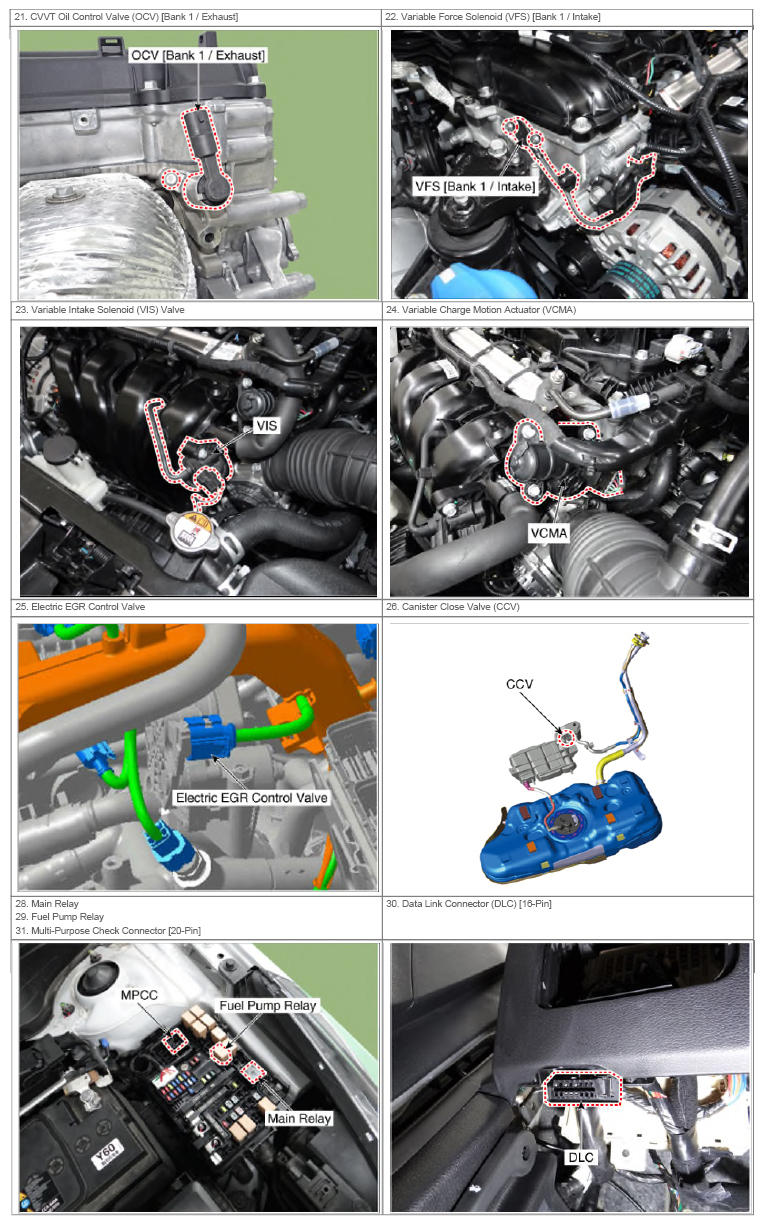

G14564268Courtesy of KIA MOTORS AMERICA, INC.
