Repair Procedures: Adjustment

Information

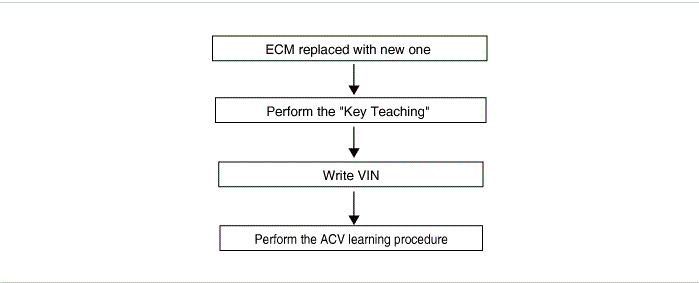

Perform inspecting procedure by using the KDS as below order.

Courtesy of KIA MOTORS AMERICA, INC.

1. Perform the "Key Teaching" procedure by using the KDS.

   [None-Smart Key]

   (S/W Management → Immobilizer → LEARNT KEYS)

   [Smart Key]

   Turn IGN ON then OFF using the smart key or start button. Then the ECM learns information on the smart key automatically.

2. Perform the VIN writing procedure by using the KDS.

   (S/W Management → Engine Control → Write VIN)

3. Using the KDS, input the current odometer values (km) on cluster for count the drift soot value information of DPF.

   (S/W Management → Engine Control → Essential work after component replacement → ECU replacement (DPF OPT))

4. Perform the Electronic Throttle Control (ETC) learning procedure.

   (Refer to "ETC (Electronic Throttle Control) System ")

   Information

   Refer to the KDS screen for operating conditions and details.
