Removal And Installation

Turn ignition switch OFF and disconnect the battery negative (-) terminal.
Remove the battery.
(Refer to Engine Electrical System - "BATTERY ")

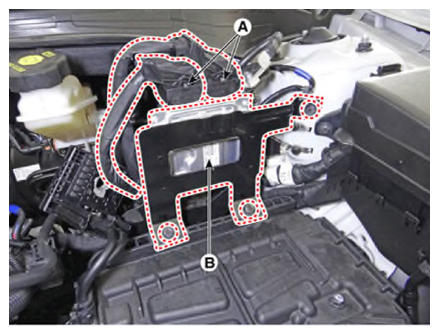

Disconnect the ECM connector (A).
Remove the mounting bolts and nut, and then remove the ECM bracket assembly (B).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

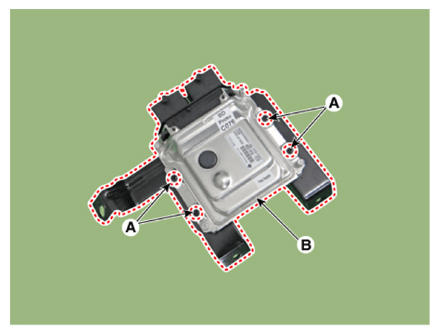

Remove the ECM (B) after loosening the mounting nuts (A) from the bracket.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
