Description And Operation: Description

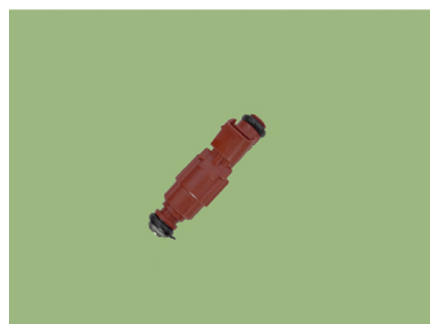

The injector installed on each cylinder head is a device that injects the fuel to the cylinder by the ECM control signal.

G14564339Courtesy of KIA MOTORS AMERICA, INC.
