Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery terminal.

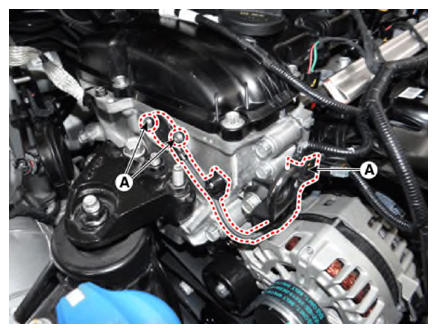

  2. Disconnect the intake middle lock control solenoid connector (A).
  3. Remove the mounting screws (A), and then remove the intake middle lock control solenoid from the engine.
G14564316Courtesy of KIA MOTORS AMERICA, INC.
