Connector Assembly Status Test

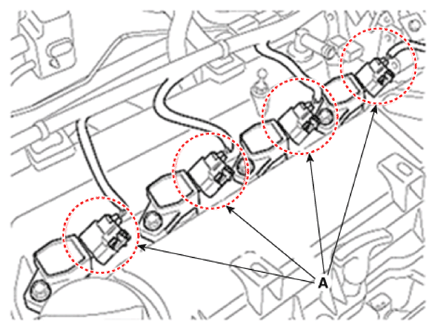

  1. Remove the connector (A) and reinstall it.
G14564153Courtesy of KIA MOTORS AMERICA, INC.

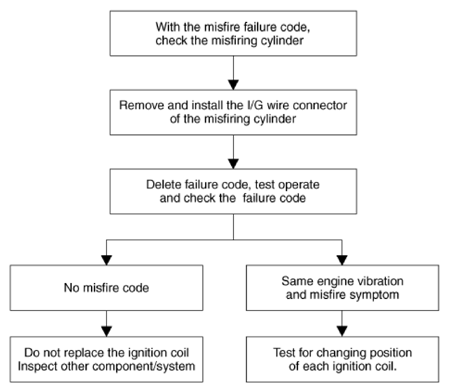

G14564154Courtesy of KIA MOTORS AMERICA, INC.
