Repair Procedures: Installation

Check that the gear is shifted to "N".

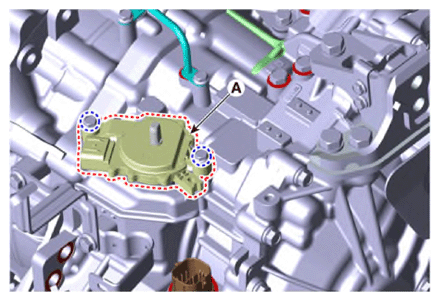

Lightly tighten the bolts after installing the position switch (A).

Courtesy of KIA MOTORS AMERICA, INC.

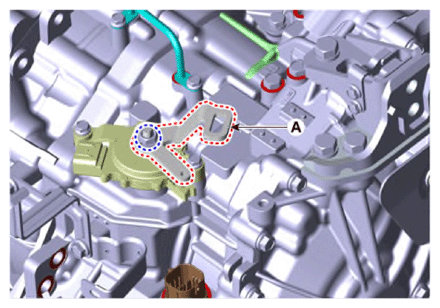

Lightly tighten the nut after installing the manual control lever (A).

Courtesy of KIA MOTORS AMERICA, INC.

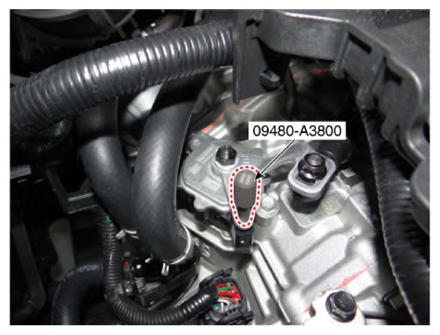

Align the hole in the manual control lever with the "N" position hole of the position switch and then insert the SST position switch guide pin (09480 - A3800).

Courtesy of KIA MOTORS AMERICA, INC.

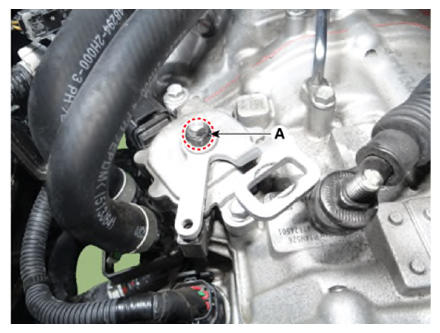

Tighten the manual control lever nut (A) with specified toque.
Tightening torque:

17.7-24.5 N.m (1.8-2.5 kgf.m, 13.0-18.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Tighten the position switch bolts (A) with specified toque.
Tightening torque:

9.8 - 11.8 N m (1.0 - 1.2 kgf m, 7.2 - 8.7 lb ft)

Courtesy of KIA MOTORS AMERICA, INC.

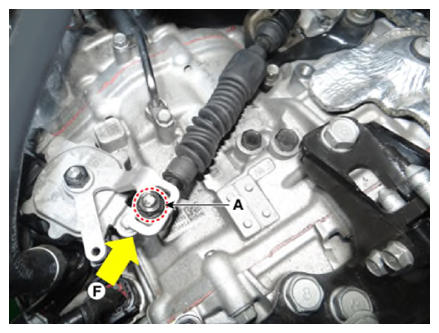

Push nut (A) lightly to "F" direction as shown to eliminate free play of shift cable.
Tighten the nut (A) with the specified torque.
Tightening torque:

9.8 - 14.7 N m (1.0-1.5 kgf m, 7.2 - 10.8 lb ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the SST (09480-A3800) from the adjustment hole.

Courtesy of KIA MOTORS AMERICA, INC.

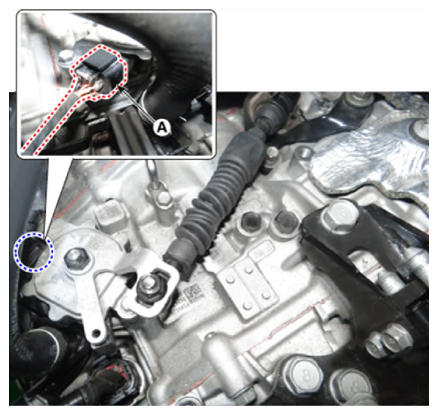

Connect the position switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install the air duct and air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
