Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the canister assembly.

    (Refer to Emission Control System - "CANISTER ")

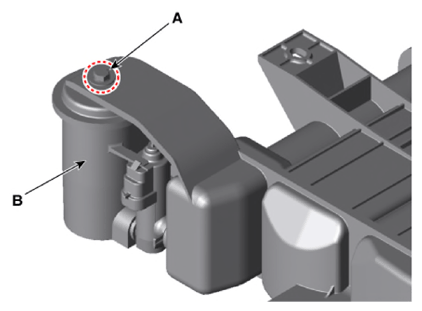

  3. Remove the installation bolt (A), and then remove the air filter (B).
    G14564373Courtesy of KIA MOTORS AMERICA, INC.

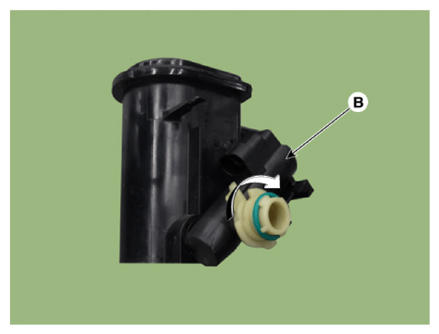

  4. Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter after rotating it in the direction of the arrow in the figure.
    G14564374Courtesy of KIA MOTORS AMERICA, INC.
    G14564375Courtesy of KIA MOTORS AMERICA, INC.
  5. Install a new fuel tank air filter in accordance with the reverse order.
