Air Flow Sensor (AFS)
>>
Components And Components Location
>>
Component Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Location

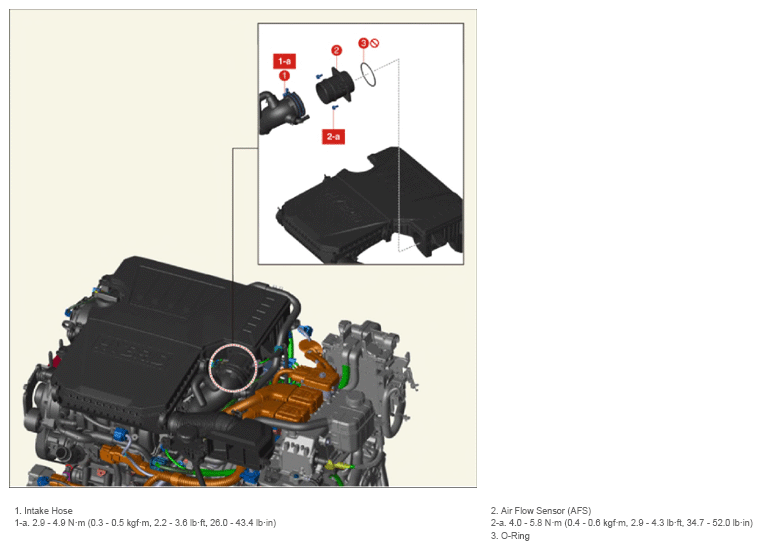

Fig 1: Air Flow Sensor Components Location With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
