Component Location

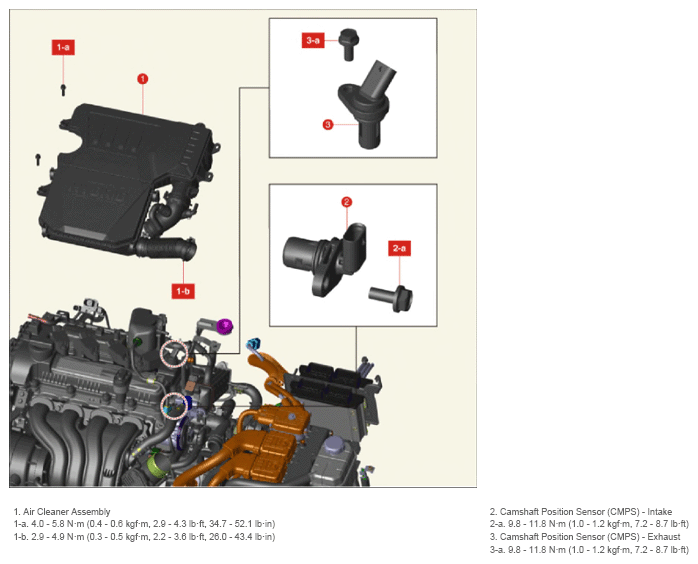

Fig 1: Camshaft Position Sensor Components Location With Torque Specifications
G15787668Courtesy of KIA MOTORS AMERICA, INC.
