Component Location

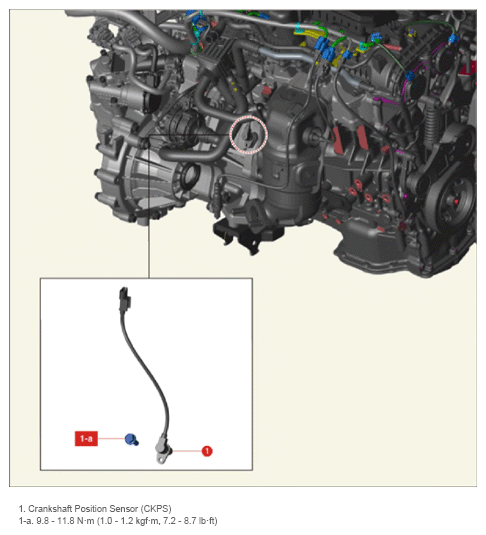

Fig 1: Crankshaft Position Sensor Components Location With Torque Specifications
G15787659Courtesy of KIA MOTORS AMERICA, INC.
