Component Location

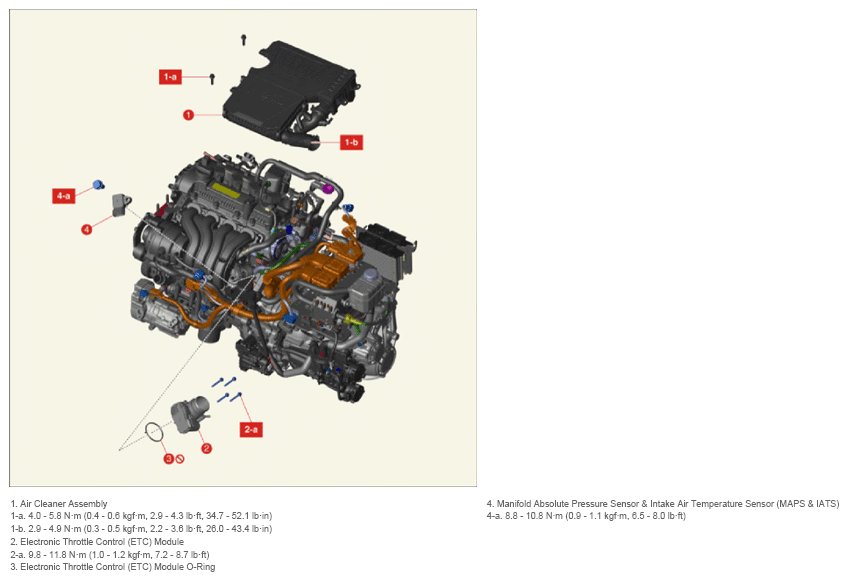

Fig 1: Manifold Absolute Pressure Sensor And Intake Air Temperature Sensor Components Location With Torque Specifications
G15787732Courtesy of KIA MOTORS AMERICA, INC.
