Repair Procedures: Removal

  1. Disconnect the battery negative (-) terminal.

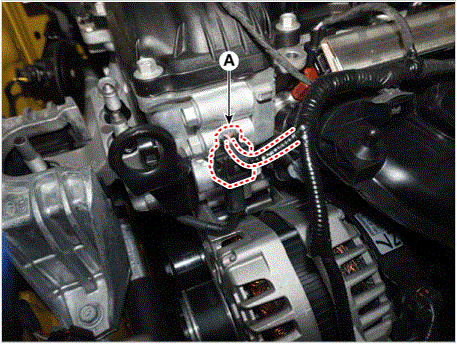

  2. Disconnect the intake middle lock control solenoid connector (A)
    G00614849Courtesy of KIA MOTORS AMERICA, INC.

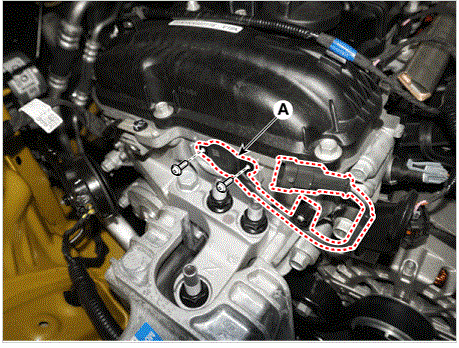

  3. Remove the intake middle lock control solenoid (A) after loosening the mounting screws.

    Tightening Torque:  8.8 - 9.8 N.m (0.9 - 1.0 kgf.m, 6.5 - 7.2 lb.ft)

    G00614850Courtesy of KIA MOTORS AMERICA, INC.
