Repair Procedures: Installation

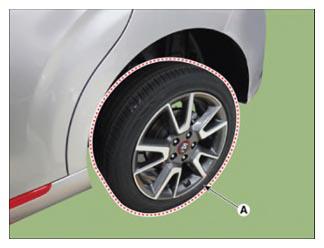

- Install the wheel and tire (A).
[Front]
 Courtesy of KIA MOTORS AMERICA, INC.
|

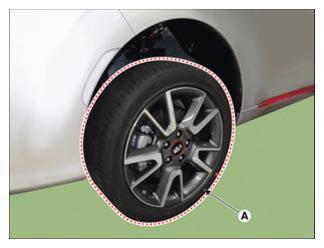

[Rear]
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Tighten the hub nuts as follows.
Tightening torque:
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
When using an impact gun, final tightening torque should be checked using a torque wrench.
