Repair Procedures: Removal

NOTE:

Intelligent Variable Transmission (IVT) is composed of delicate components. Be careful not to cause any damage on the component when assembling and disassembling.
Maintain clean condition so that foreign substance does not get into the Intelligent Variable Transmission (IVT).
Use a coated apron, latex gloves, and stainless tray to prevent foreign substance from getting into the Intelligent Variable Transmission (IVT).

Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

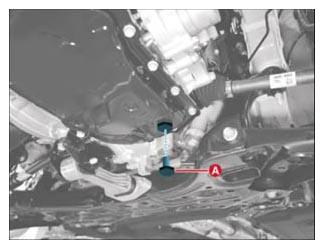

Remove the IVTF drain plug (A), allow the fluid to drain out and then reinstall the drain plug.
Tightening torque:

34.3 - 39.2 N.m (3.5 - 4.0 kgf.m, 25.3 - 28.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Intelligent variable transmission fluid (IVTF) can be reused. Collect it using a clean 10-liter beaker.
- The existing IVTF drain plug gasket must be replaced with a new one (do not reuse).

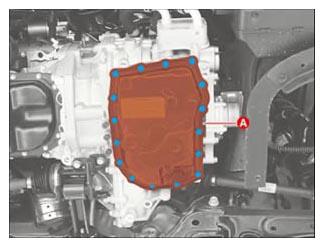

Remove the valve body cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful when removing the valve body cover because the remaining IVTF remains in the valve body cover.

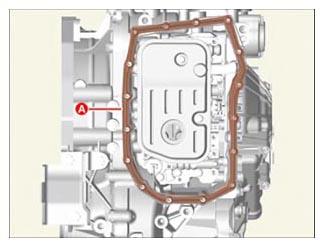

Remove the valve body cover gasket (A).

Courtesy of KIA MOTORS AMERICA, INC.

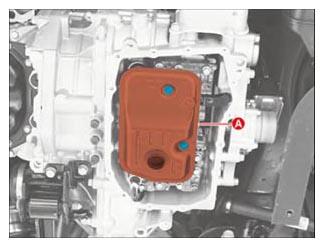

Remove the IVTF filter (A) after removing the bolts.

Courtesy of KIA MOTORS AMERICA, INC.

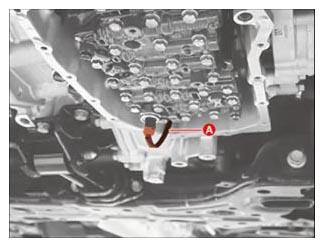

Disconnect the pressure sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

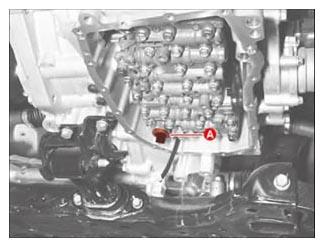

Remove the pressure sensor (A).

Courtesy of KIA MOTORS AMERICA, INC.
