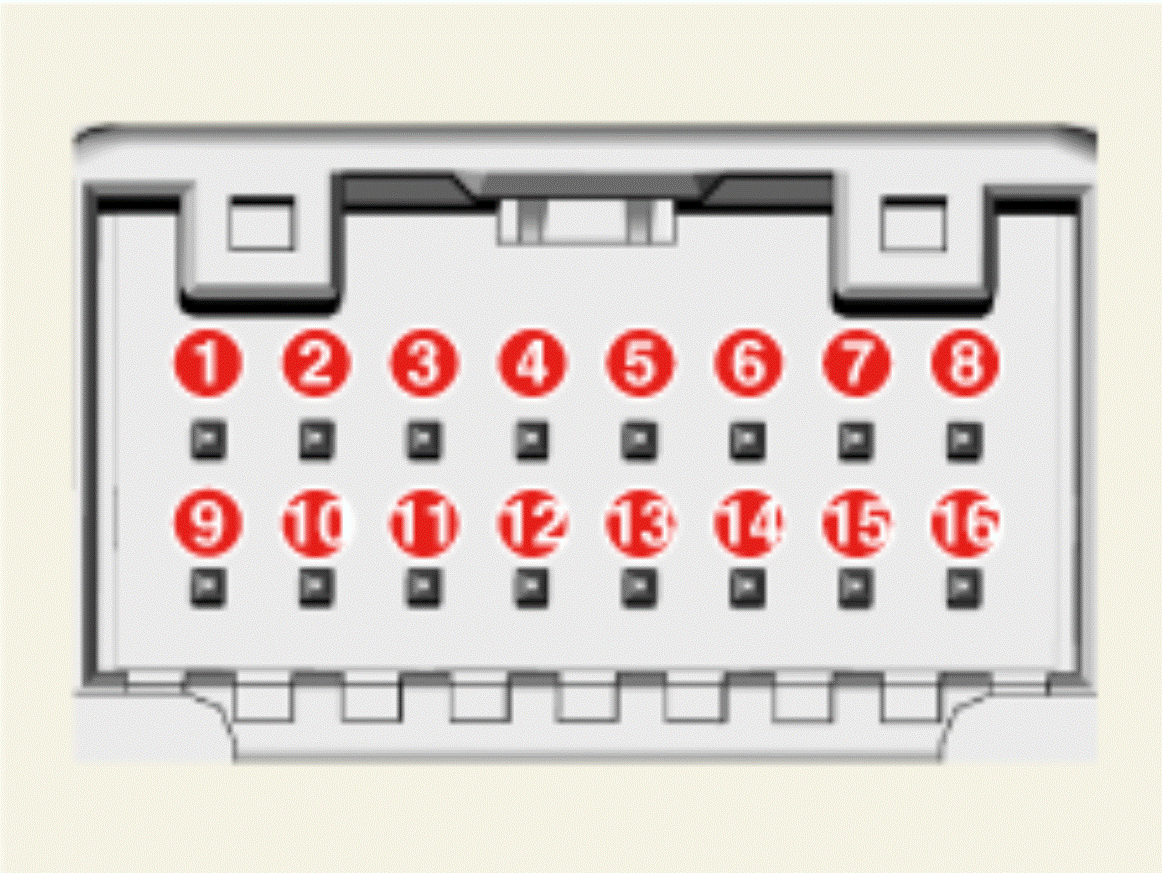

Driver Power Window Switch

Courtesy of KIA MOTORS AMERICA, INC.
Pin	Function
1	-
2	B-CAN (Low)
3	B-CAN (High)
4	-
5	[With IMS] LIN: Power outside mirror control
6	[Without IMS] Power outside mirror folding signal
7	[Without IMS] Power outside mirror unfolding signal
8	Fuse - module 8
9	Ground
10	[Without IMS] Power outside mirror (VL)
11	[Without IMS] Power outside mirror (HL)
12	[Without IMS] Outside mirror (Common) [With IMS] Driver IMS switch
13	[Without IMS] Power outside mirror (HR)
14	[Without IMS] Power outside mirror (VR)
15	-
16	Fuse - module 4
