Passenger Power Window Switch

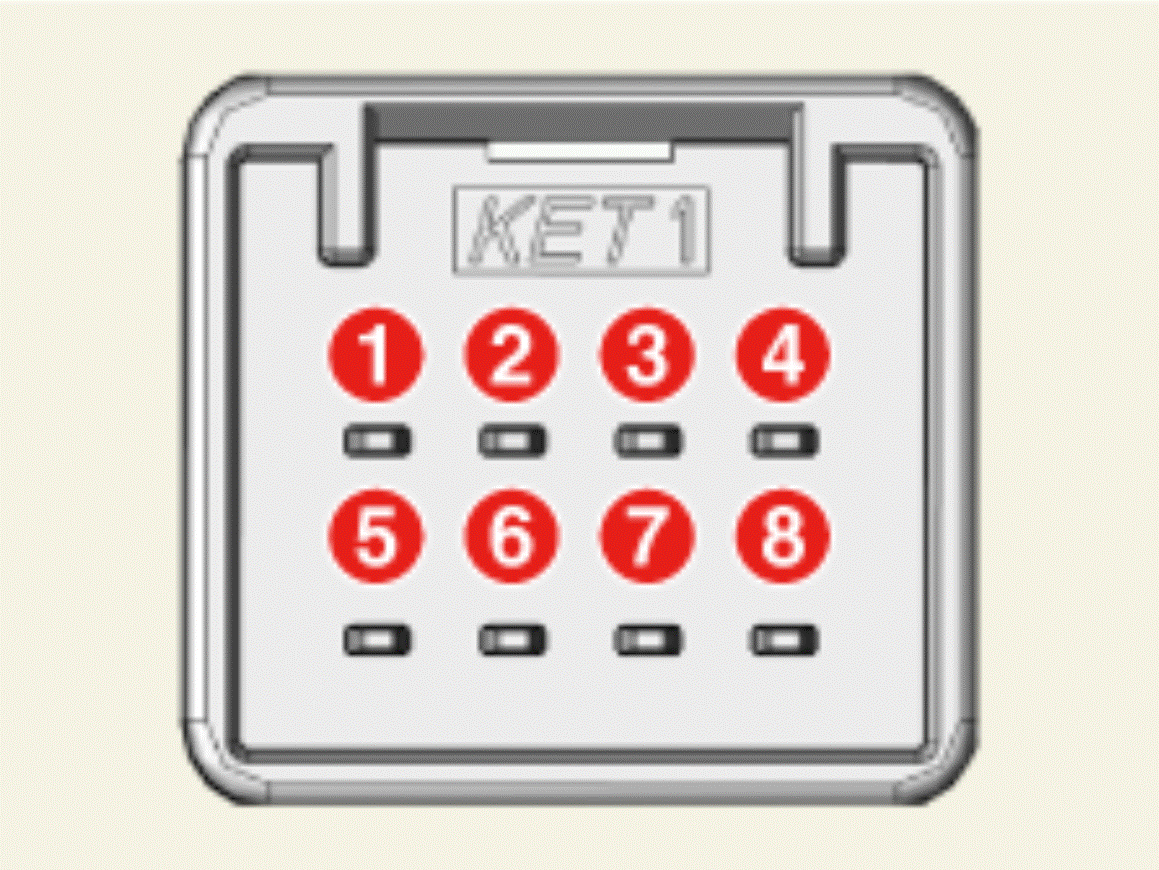

G15710339Courtesy of KIA MOTORS AMERICA, INC.
Pin Function
1 Illumination (-)
2 Door lock switch
3 Door unlock switch
4 Illumination (+)
5 Ground
6 -
7 Safety power window switch
8 -
