Electronic Throttle Control (ETC) Motor

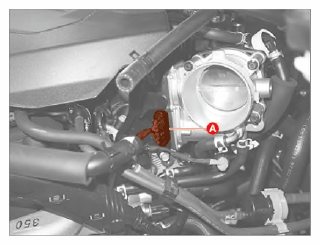

Disconnect the electronic throttle control (ETC) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

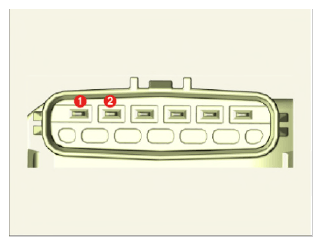

Measure resistance between the ETC module terminals 1 and 2 after disconnecting the connector.
Coil resistance (Ω): 1.38

Courtesy of KIA MOTORS AMERICA, INC.

Terminal	Function
1	Motor (-)
2	Motor (+)
