Removal & Installation: Removal

Remove the water center pipe.
(Refer to Engine Mechanical System - "WATER TEMPERATURE CONTROL ASSEMBLY ")

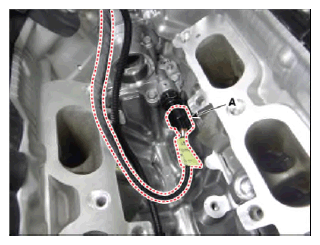

Disconnect the Oil Pressure & Temperature Sensor (OPTS) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

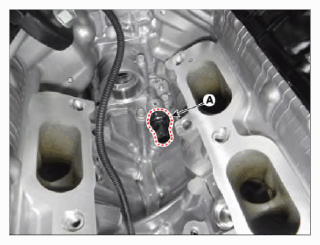

Remove the OPTS (A).
Tightening torque:

14.7 - 21.6 N.m (1.5 - 2.2 kgf.m, 10.8 - 15.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
