Wheel Alignment: Tires/Wheels/Alignment: Tire: Installation

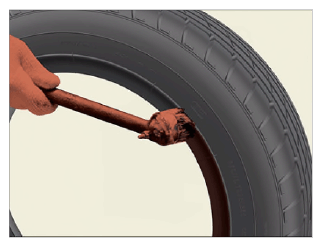

Lubricate the tire bead side using tire mounting lubricant.
Specified Lubricant : Soapy water or YH100 (Lubricants for tire assembling)

Courtesy of KIA MOTORS AMERICA, INC.

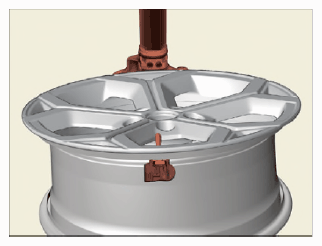

Place the TPMS sensor at 5 o'clock position from the tire replacing machine head for installing the bottom bead.

Courtesy of KIA MOTORS AMERICA, INC.

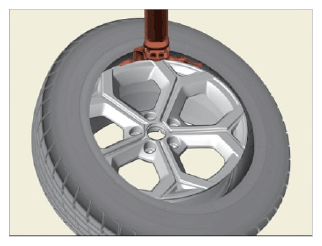

Rotate the rim clockwise, and push down on the tire at the 3 o'clock position to install the bottom bead.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Install the tire on the wheel so that the bead touches the rim edge (6 o'clock direction) behind the sensor.
Push down the tire at 3 o'clock position and then rotate the rim clockwise to install the upper bead.

Courtesy of KIA MOTORS AMERICA, INC.

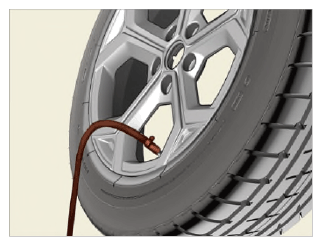

Inflate the tire until the beads fit.

Courtesy of KIA MOTORS AMERICA, INC.

TIRE PRESSURE SPECIFICATION

Tire	Front	Rear
245/60 R18	245/50 R20
250 kPa (36 psi)	245/50 R20
