Wheel Alignment: Tires/Wheels/Alignment: Tire: Removal

Remove the wheels and tires.
(Refer to Tires/Wheels - "WHEEL ")
Deflate the tires.

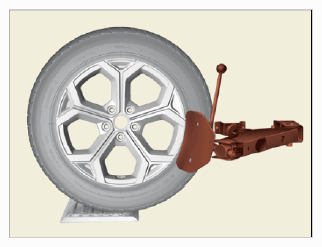

Remove the tire from the wheel using the tire replacing equipment.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Make sure the bead breaker is sufficiently separated from the TPMS sensor.
- Remove the bead at away 90°, 180°, and 270° from the valve.

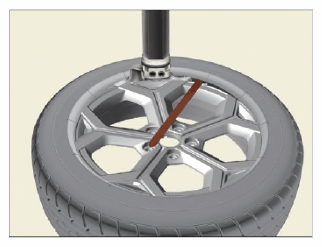

Remove the tire by levering it and rotating the wheel clockwise.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

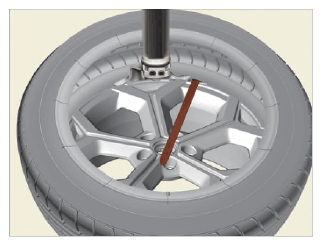

NOTE:
- Set the TPMS sensor at 12 o'clock from the head of the tire changer.
- When lifting the bead with the lever, make sure that the sensor is not impacted.
